\nThe System 16 Welding Table Series is the ideal choice for fine detail applications.
\n

\n
\n
\n
\n
\n

All System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
\n

\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

\n
\n
\n
\n

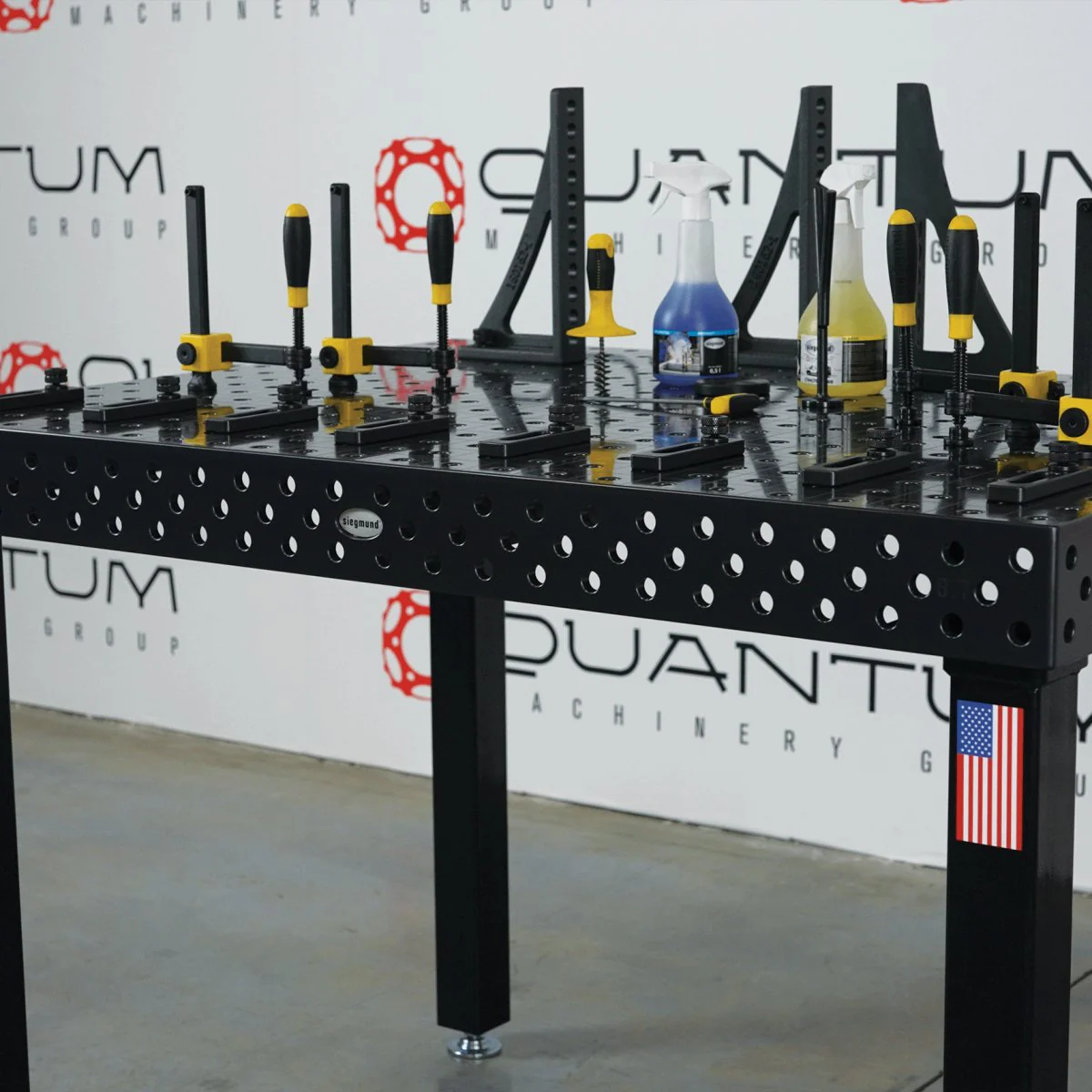

Items Included in Bundle #US168025.X7

\n

for the Siegmund System 16 Welding Tables (35 Piece Bundle)

\n

Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (5/8\") Bore Holed Siegmund Imperial Series Welding Tables.

\n
\n
\n
\n
\n

\n
\n
\n
\n

Accessories Included in
Set #5
for the Siegmund System 16 Welding Tables
(117 Pieces)

\n

Total Weight of Set: 245 lbs.

Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (0.63\") Bore Holed Siegmund Welding Tables.

\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

\n
\n
\n
\n

Items Included
in Bundle #US168025.XD7
for the Siegmund System 16 Imperial Series Welding Tables
(35 Piece Bundle)

Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (5/8\") Bore Holed Siegmund Imperial Series Welding Tables.

\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\"\"
\n\n
\n
\n

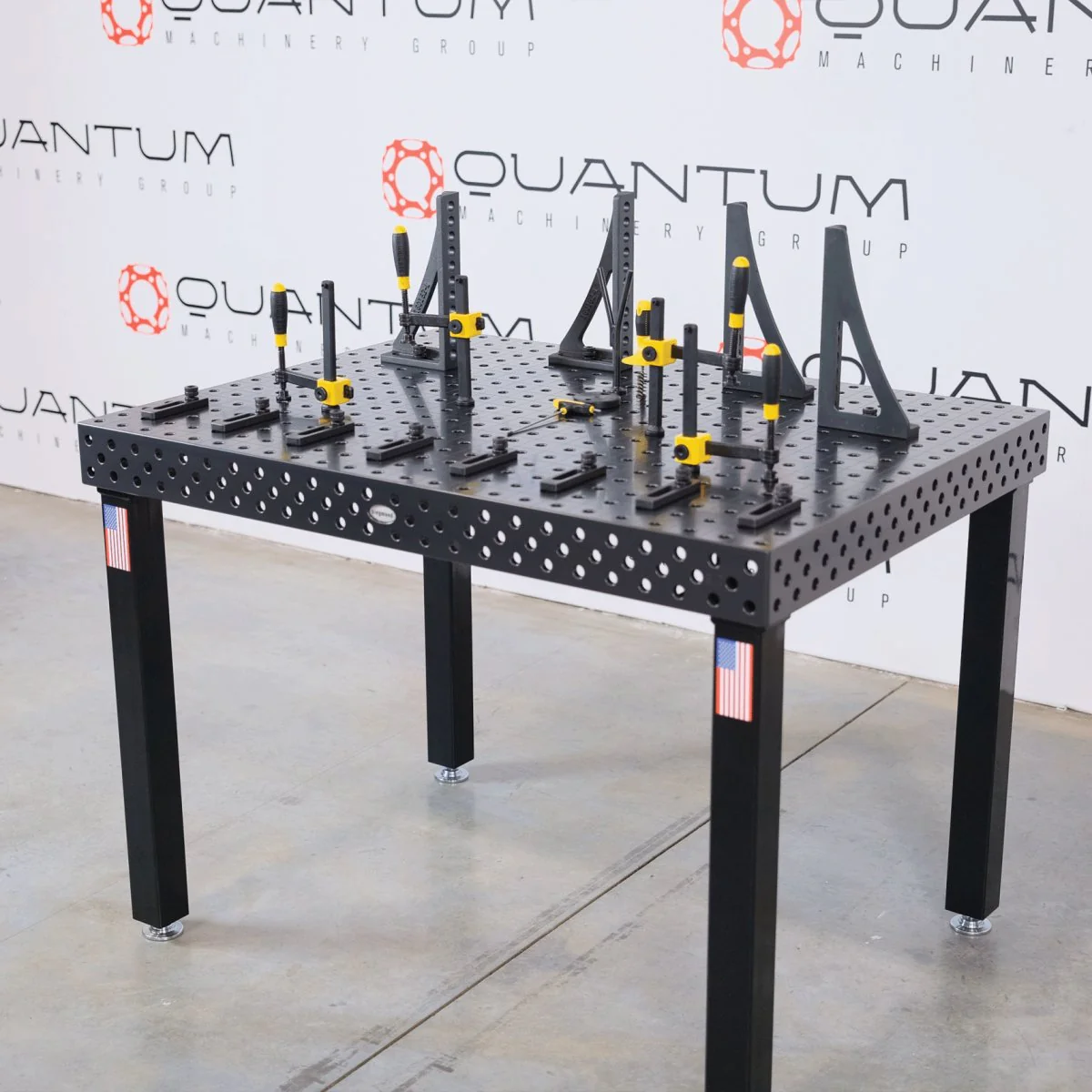

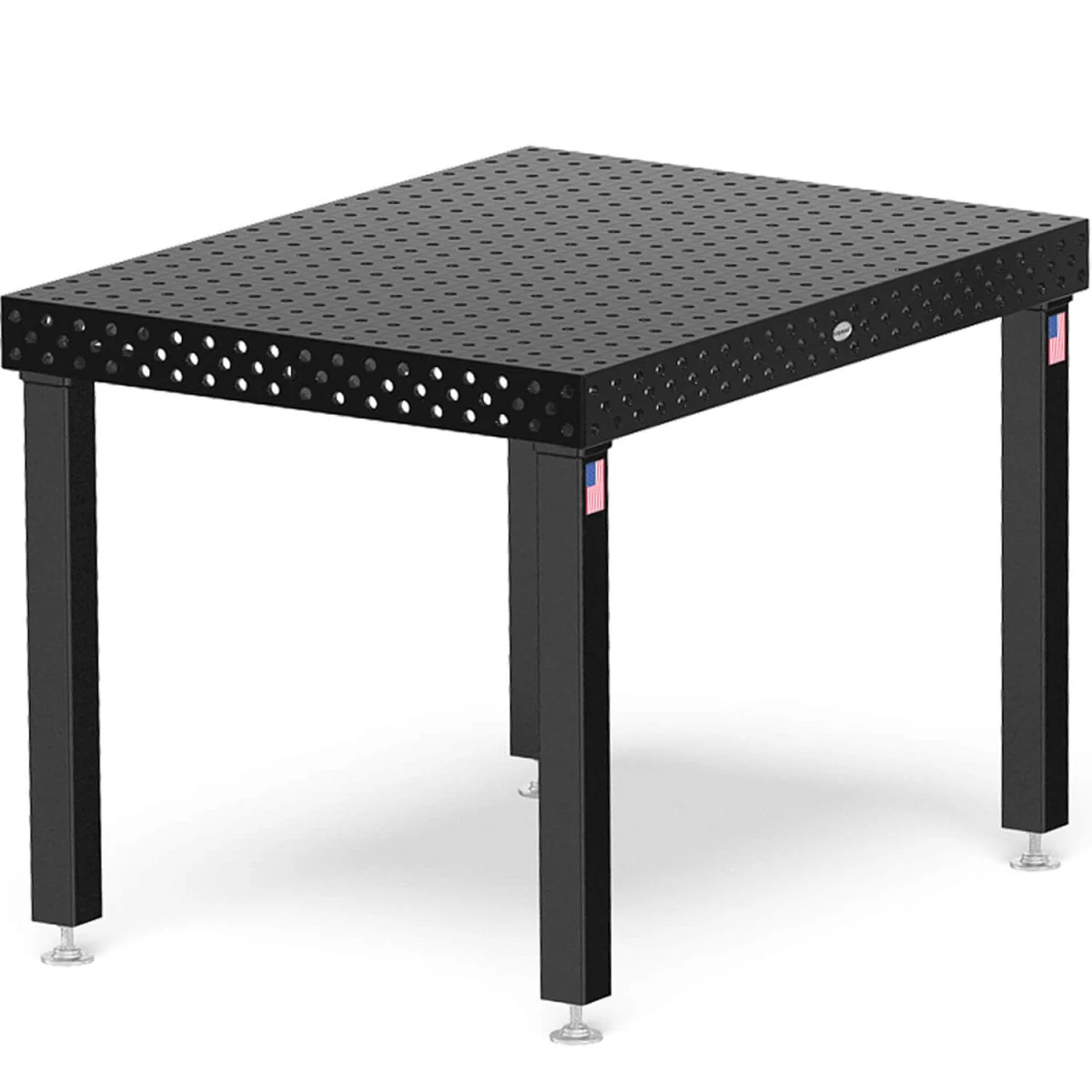

US160025.X7
Quantity: 1
3'x4' Imperial Series Welding Table
(Plasma Nitrided)

\n
\n
\n
\n
\n
\"\"
\n\n
\n
\n

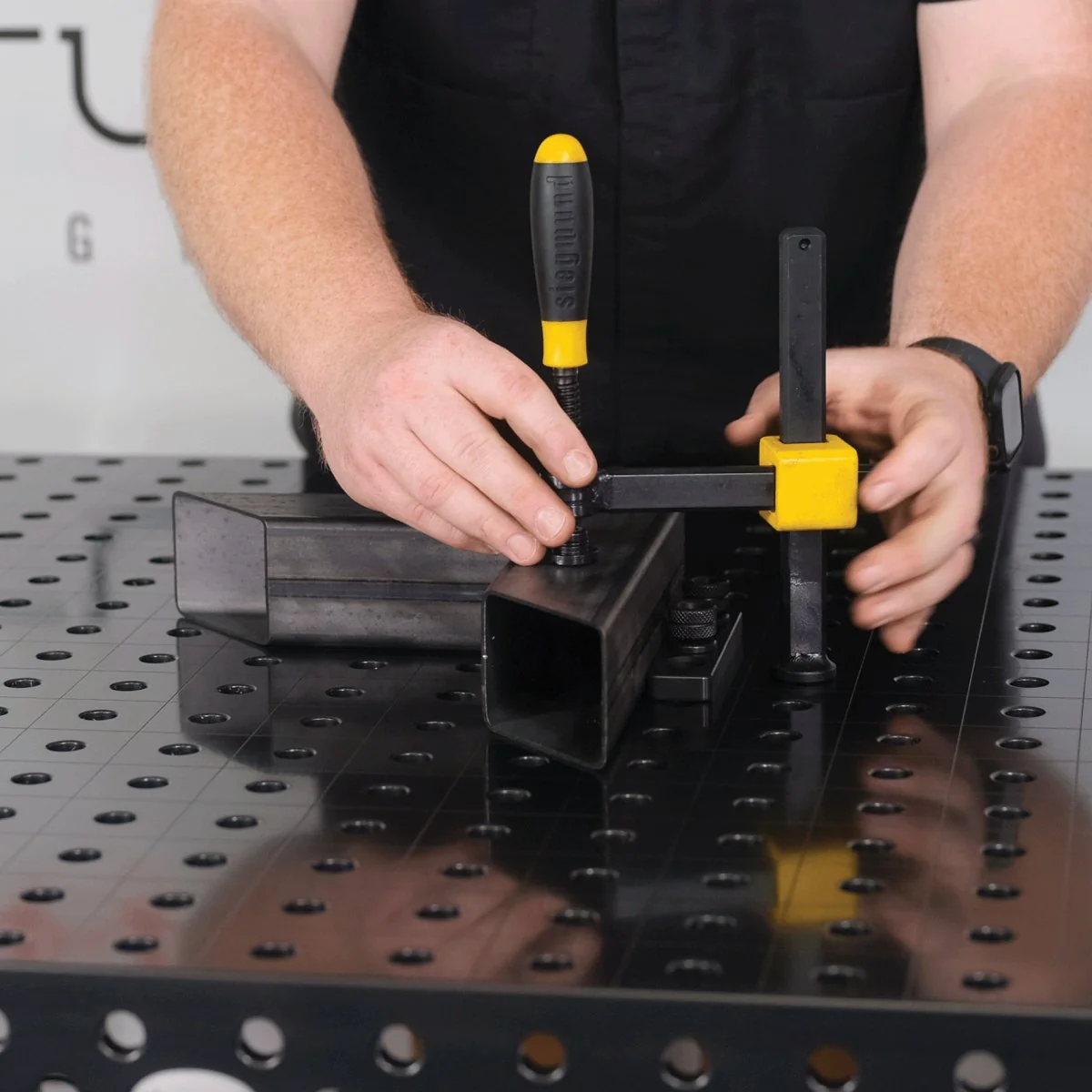

US160610.N
Quantity: 4

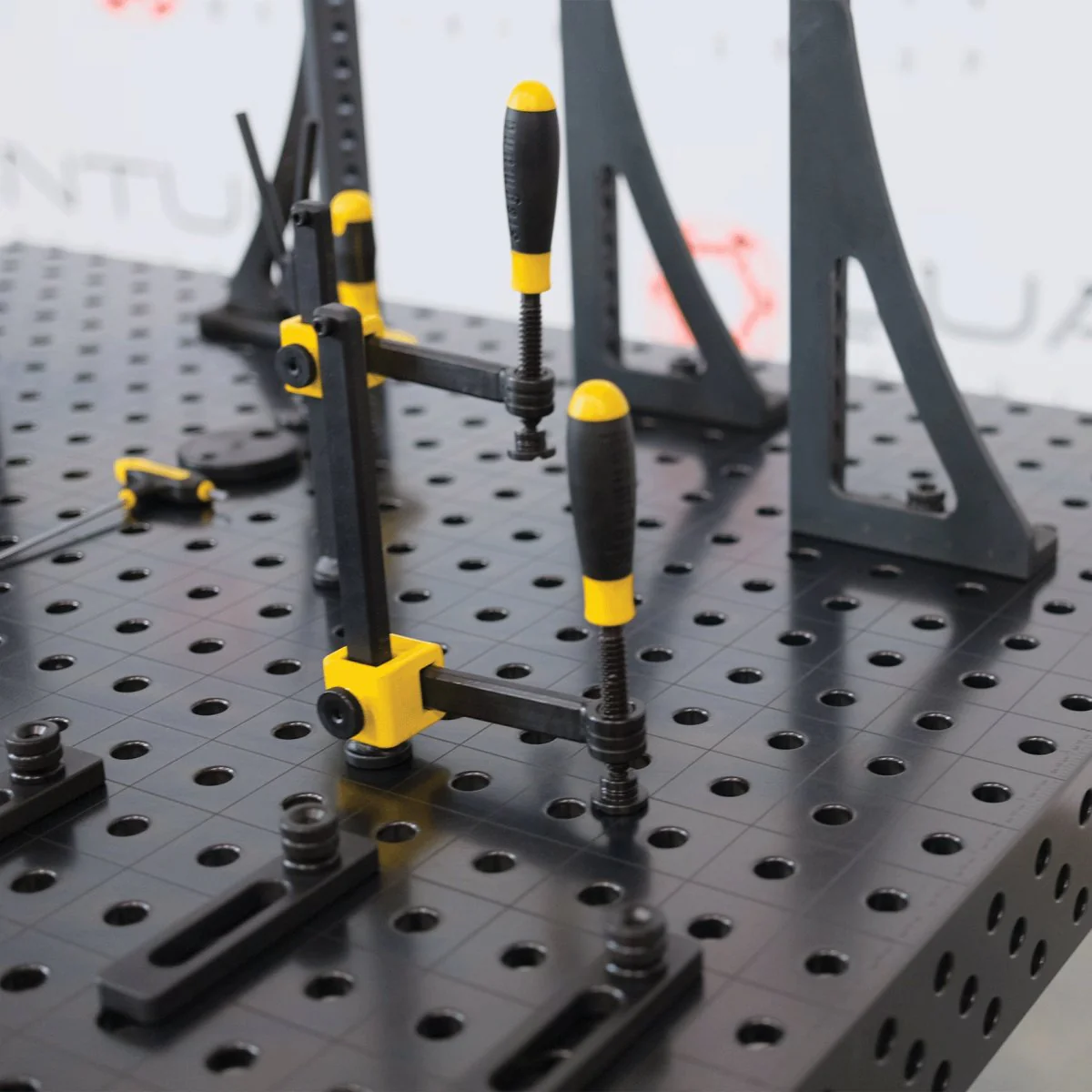

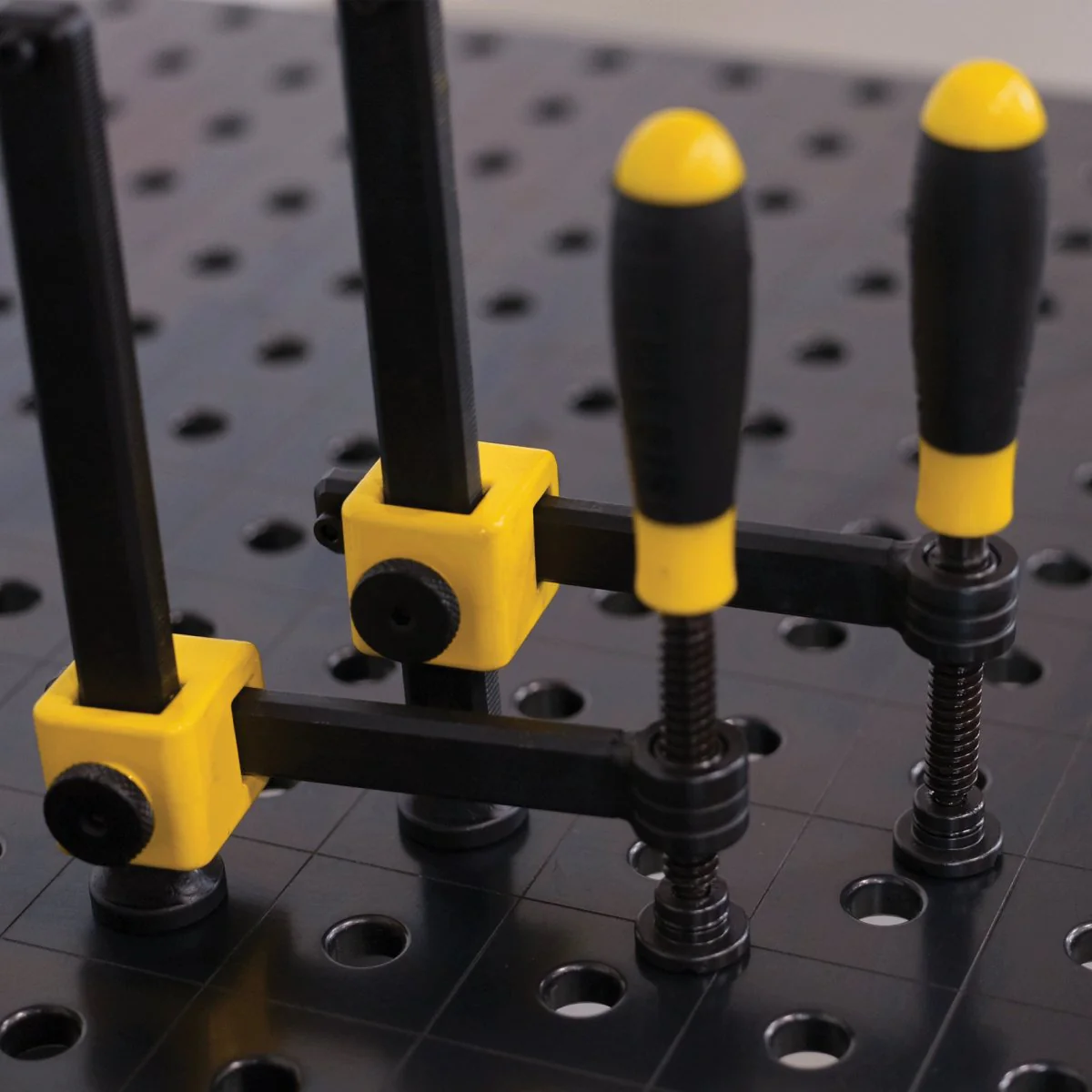

Professional Screw Clamp (Nitrided)

\n
\n
\n
\n
\n
\"\"
\n\n
\n
\n

US160511

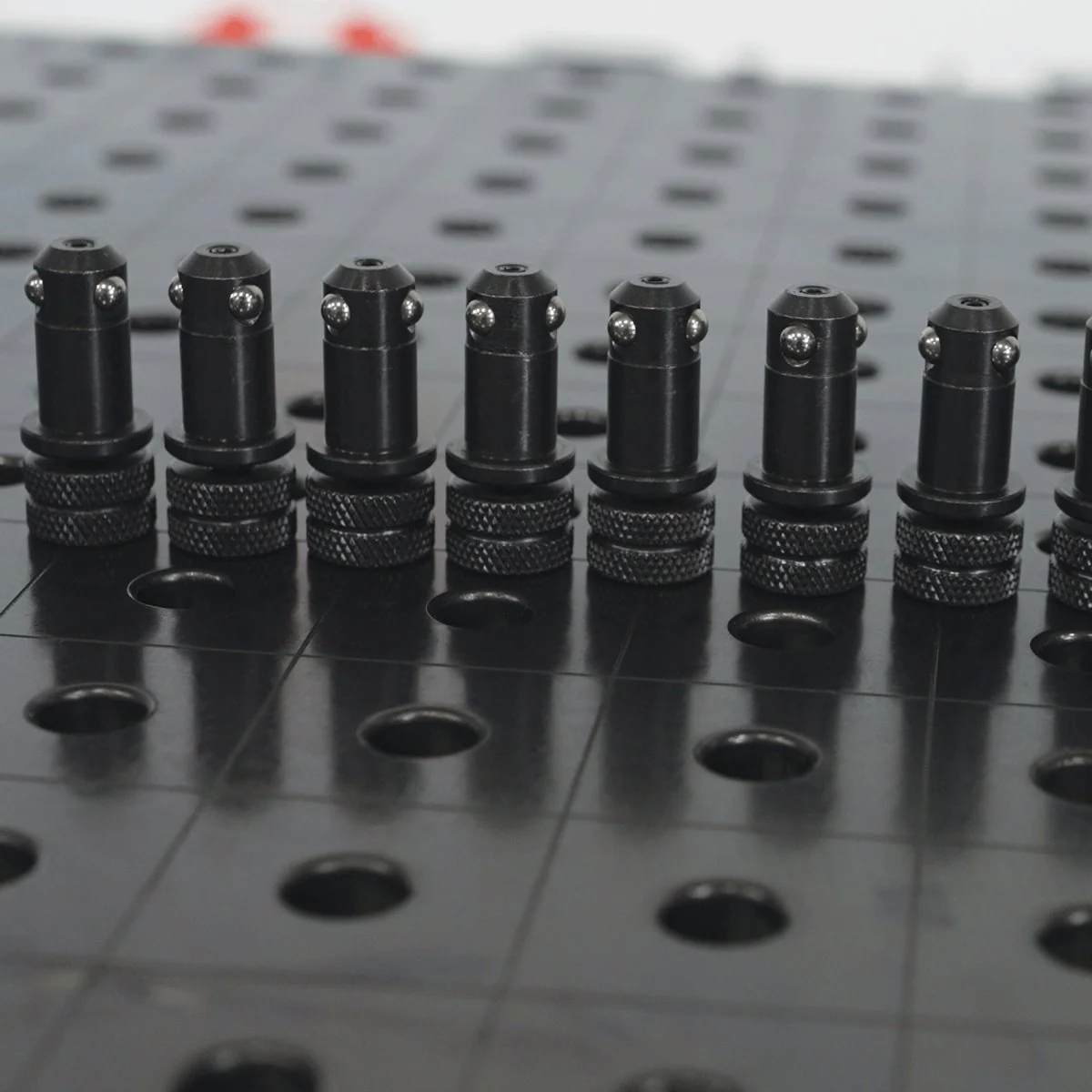

Quantity: 12
Short Fast Clamping Bolt (Burnished)

\n
\n
\n
\n
\n
\"\"
\n\n
\n
\n

US160420.N
Quantity: 8
5\" Universal Stop (Nitrided)

\n
\n
\n
\n
\n
\"\"
\n\n
\n
\n

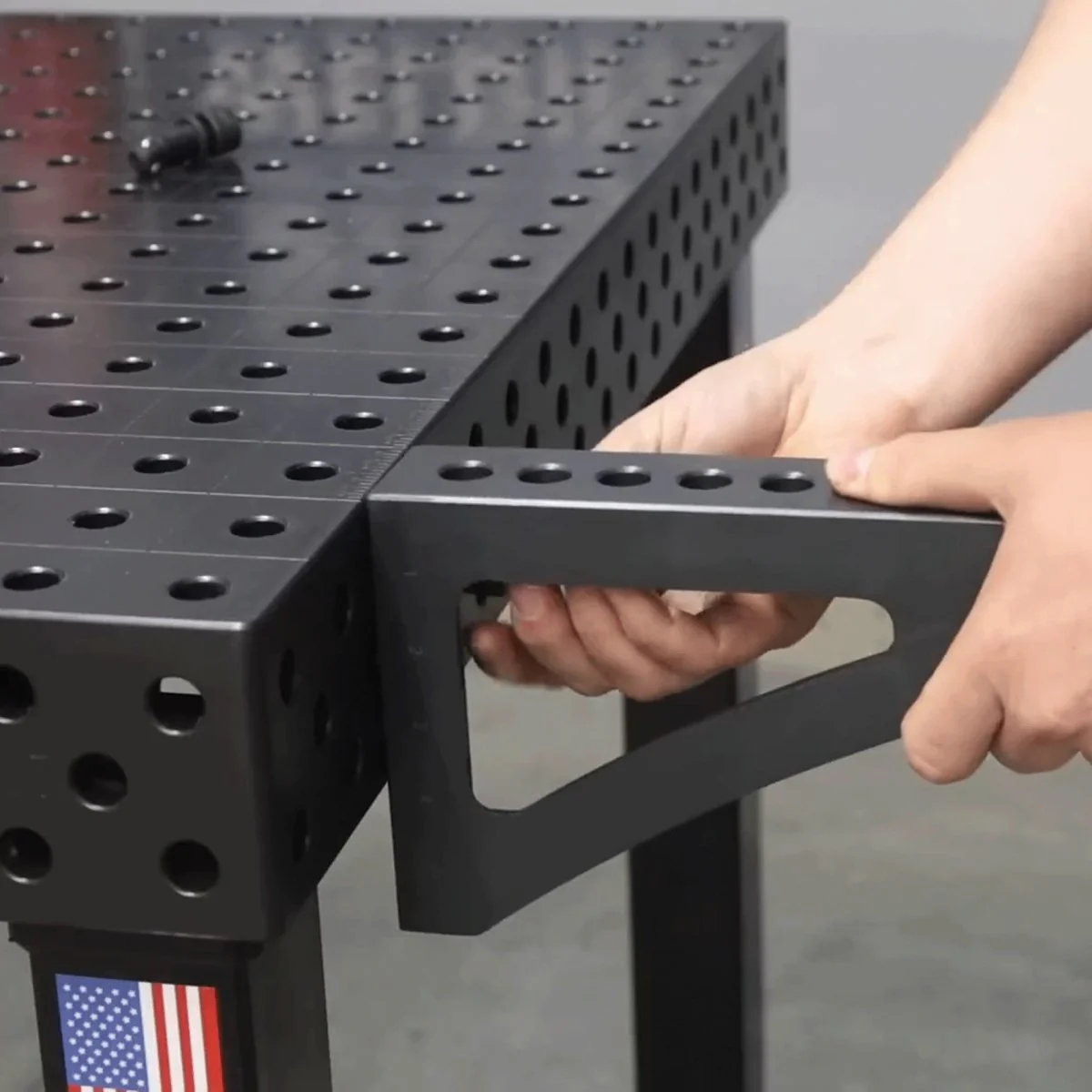

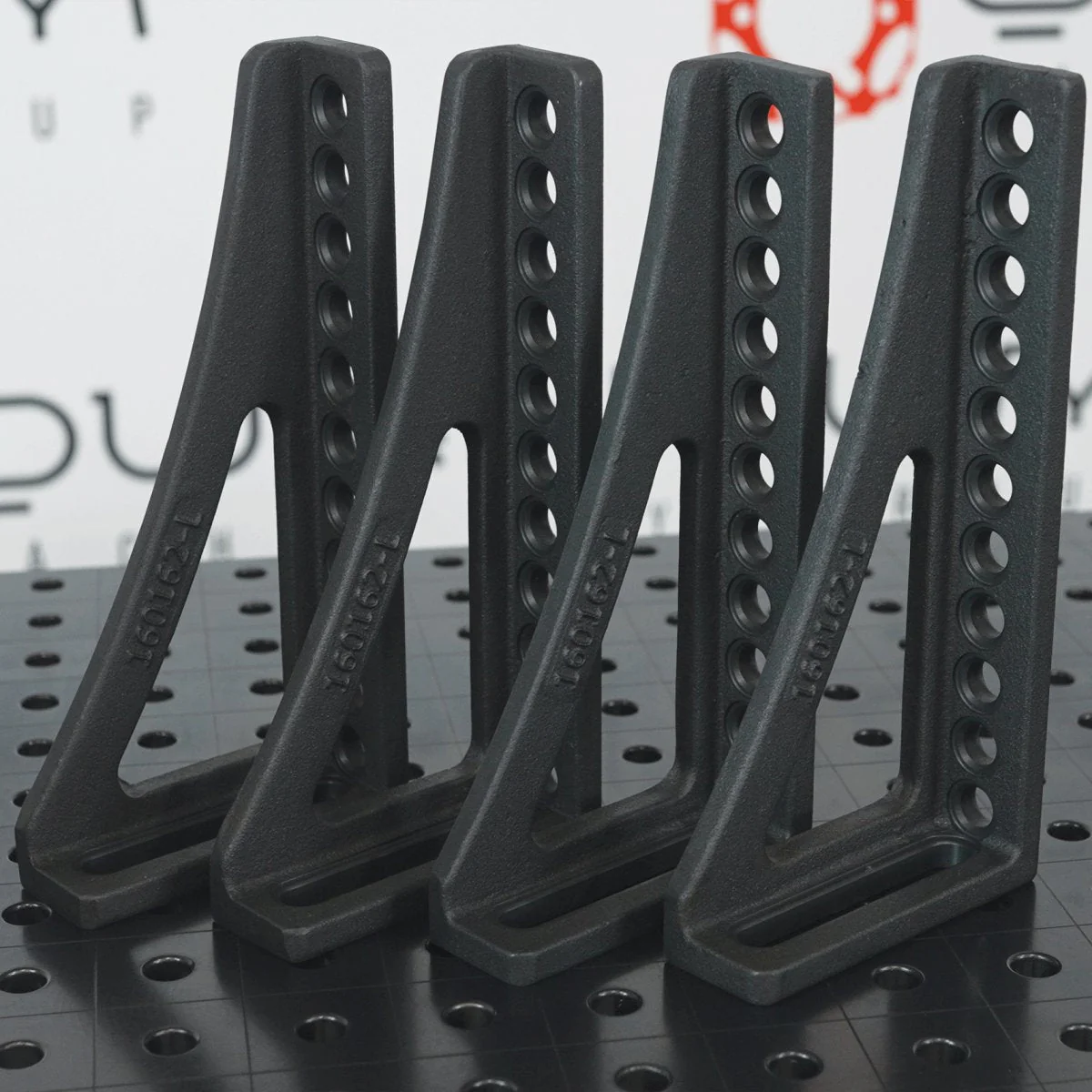

US160162.N
Quantity: 4
12\" Stop and Clamping Square
(Nitrided)

\n
\n
\n
\n
\n
\"\"
\n\n
\n
\n

US163999
Quantity: 1
Maintenance Set

\n
\n
\n
\n
\n
\n
\n
\n
\n
\"\"
\n\n
\n
\n
\n
\"\"
\n\n
\n
\n
    \n
  • The materials used are fundamental to the high level of hardness and long service life.
    • \n
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
    • \n
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
    • \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\"\"
\n\n
\n
\n
\n
\n
\n
\n
\n
\nSiegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.\n
\n
\n
\n
\n
\n
\n
\n
\n
\"\"
\n\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

\n
\n
\n
\n

Specs and Features

\n

of the System 16, 8.7 Imperial Series Welding Tables

\n
\n
\n
\n
\n
\n
\n
\n
\n

\n
\n
\n
\n

Specs & Features
of the System 16, 8.7 Imperial Series
Welding Tables

\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\"\"
\n\n
\n
\n
\n
\n
\n
\n
\n

Welding Table Specs and Features:

\n
    \n
  • \nOverall Tabletop Size: 3' x 4' (36\" x 48\")
    • \n
  • \nBorehole Diameter: Ø 16mm (5/8\")
    • \n
  • \nWelding Table Series: Professional Extreme 8.7 Series
    • \n
  • \nWelding Table Material Thickness: Approx. 7/16\" to 1/2\"
    • \n
  • \nWelding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
    • \n
  • \nTable Surface Hardness: 450-850 Vickers
    • \n
  • \nOfficial Siegmund Welding Table Part No.: US160025.X7
    • \n
  • \nMaximum Weight Load: 5,380 lbs. (Based on Even Distribution)
    • \n
  • \nApproximate Table Weight: 486 lbs.
    • \n
\n
    \n

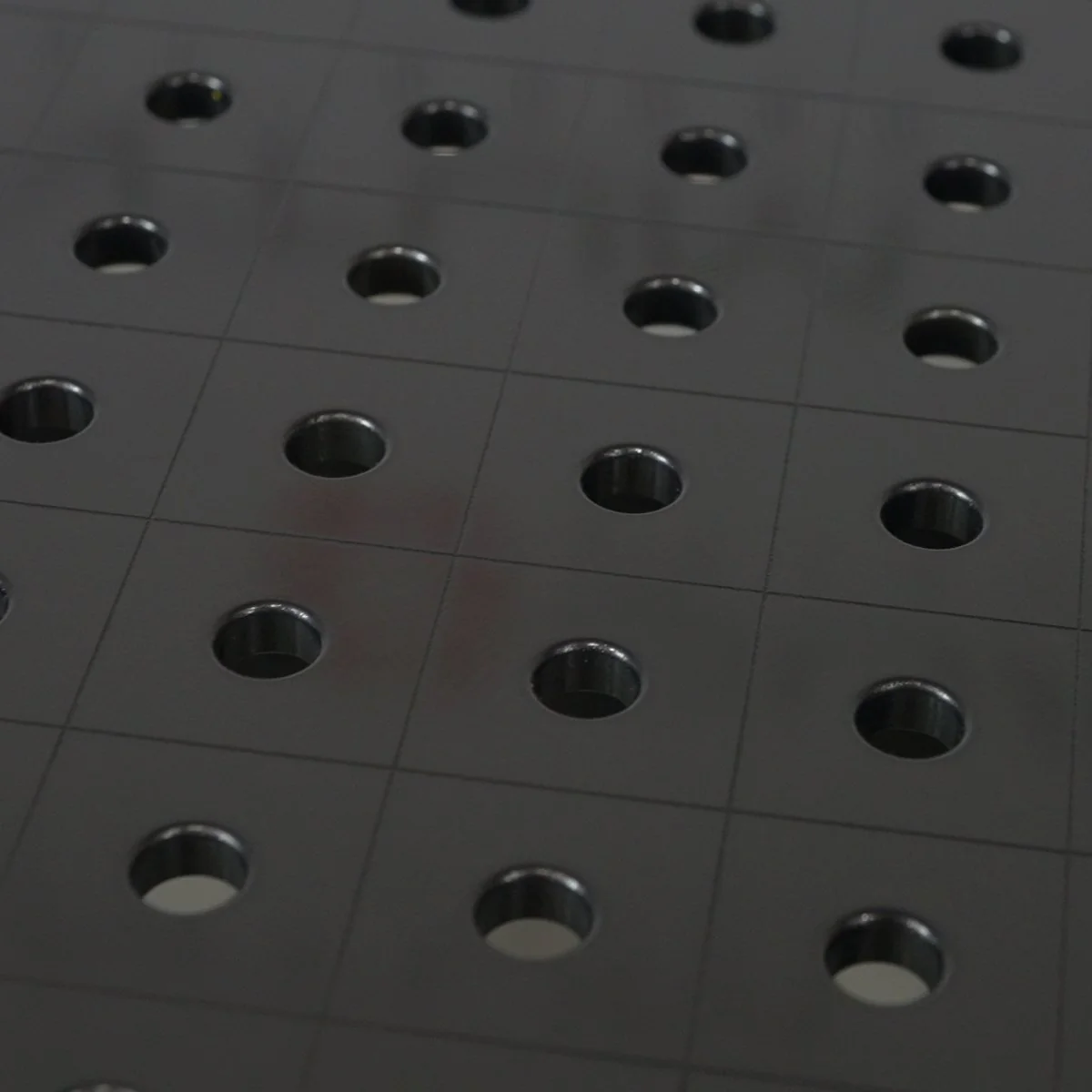

  1. Boreholes on the Surface are a 2\"x2\" Inch Grid Configuration.
    2. \n
  2. Boreholes have a diameter of 16mm (5/8\"), Boreholes have a 1/16\" Radius.
    3. \n
  3. Radius 1/10\" on the table edges and 1/4\" on the corners.
    4. \n
  4. Height of table side is 3-5/16\" - Borehole in Diagonal Grid.
    5. \n

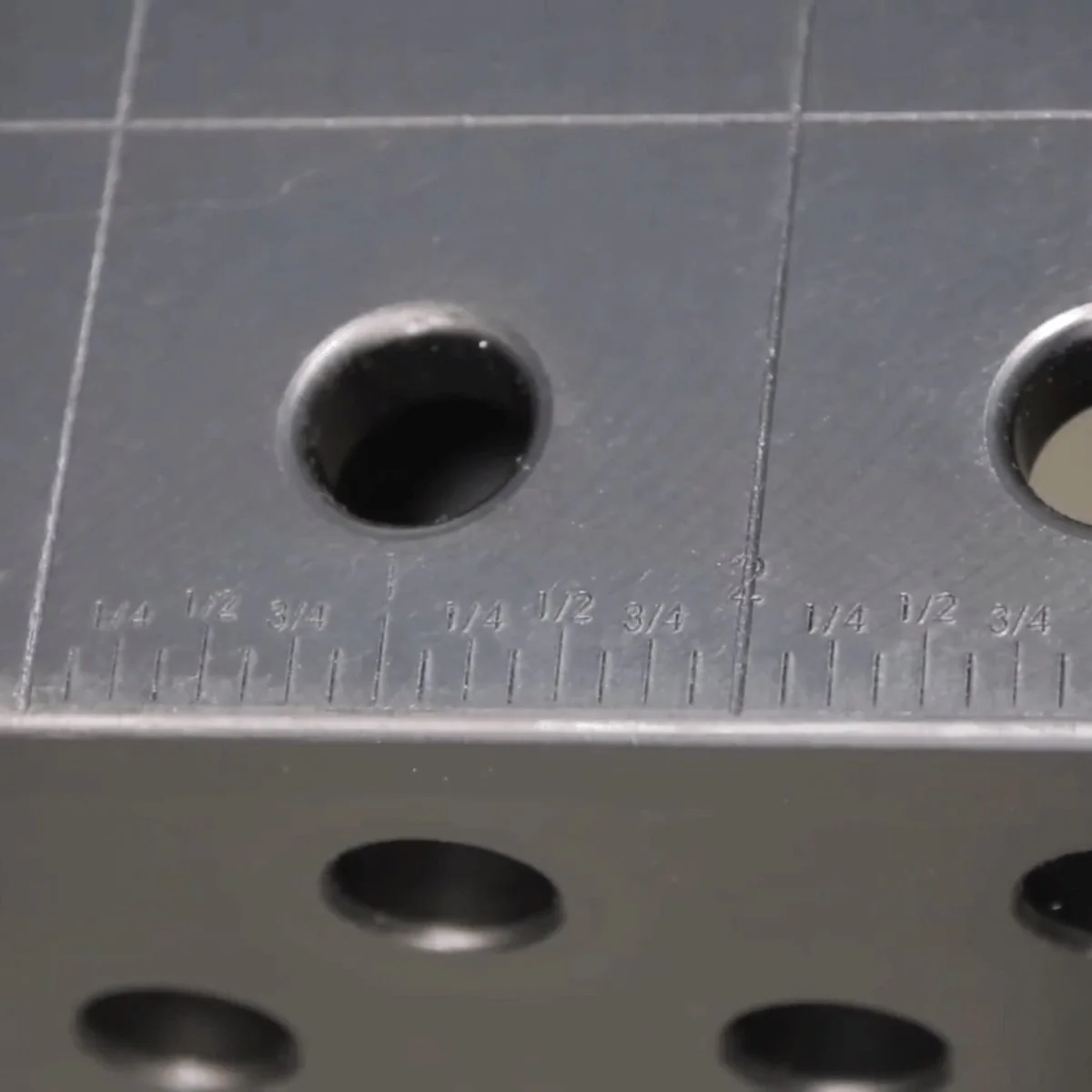

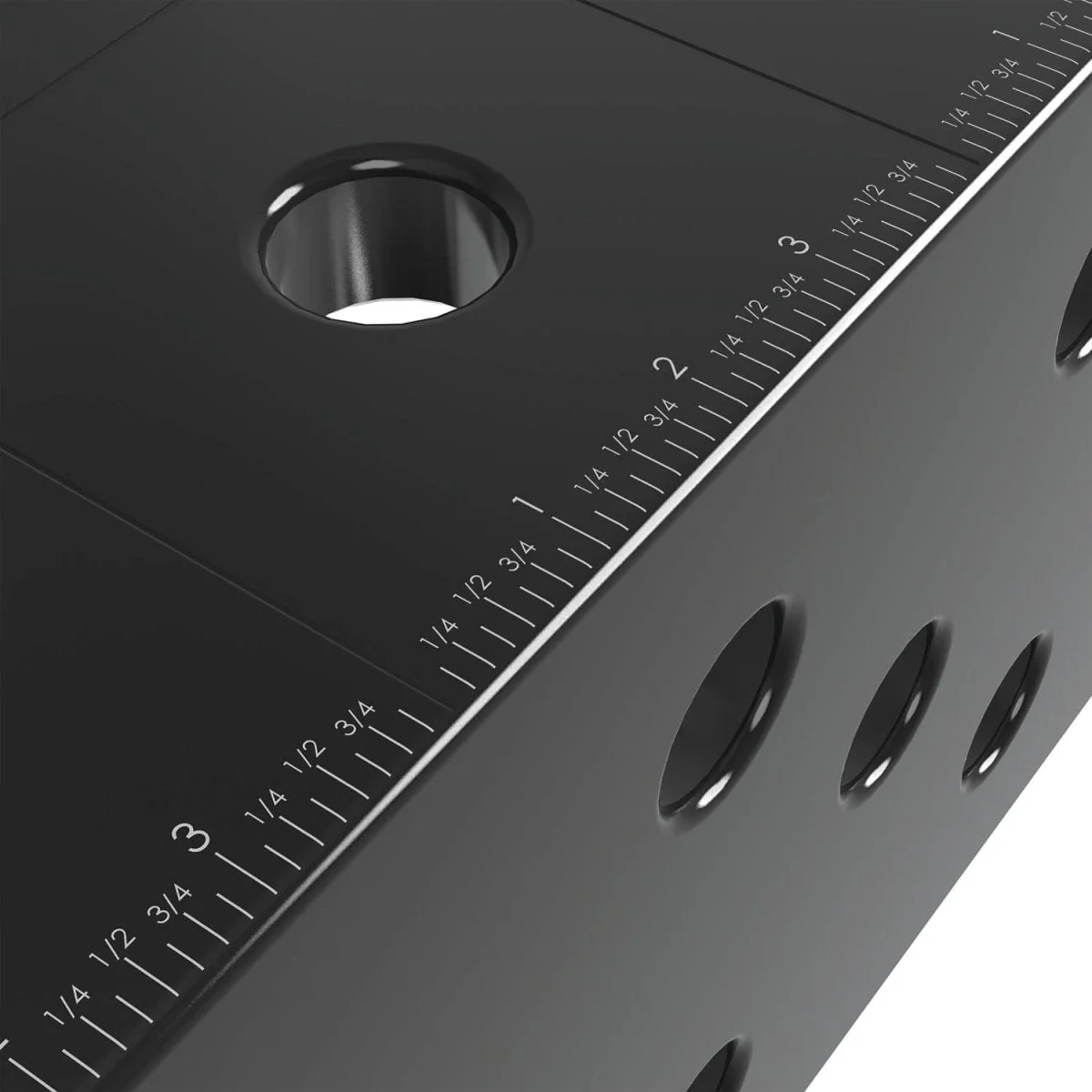

  5. INCH Scale Engraved on the Surface.
    6. \n
  6. \n

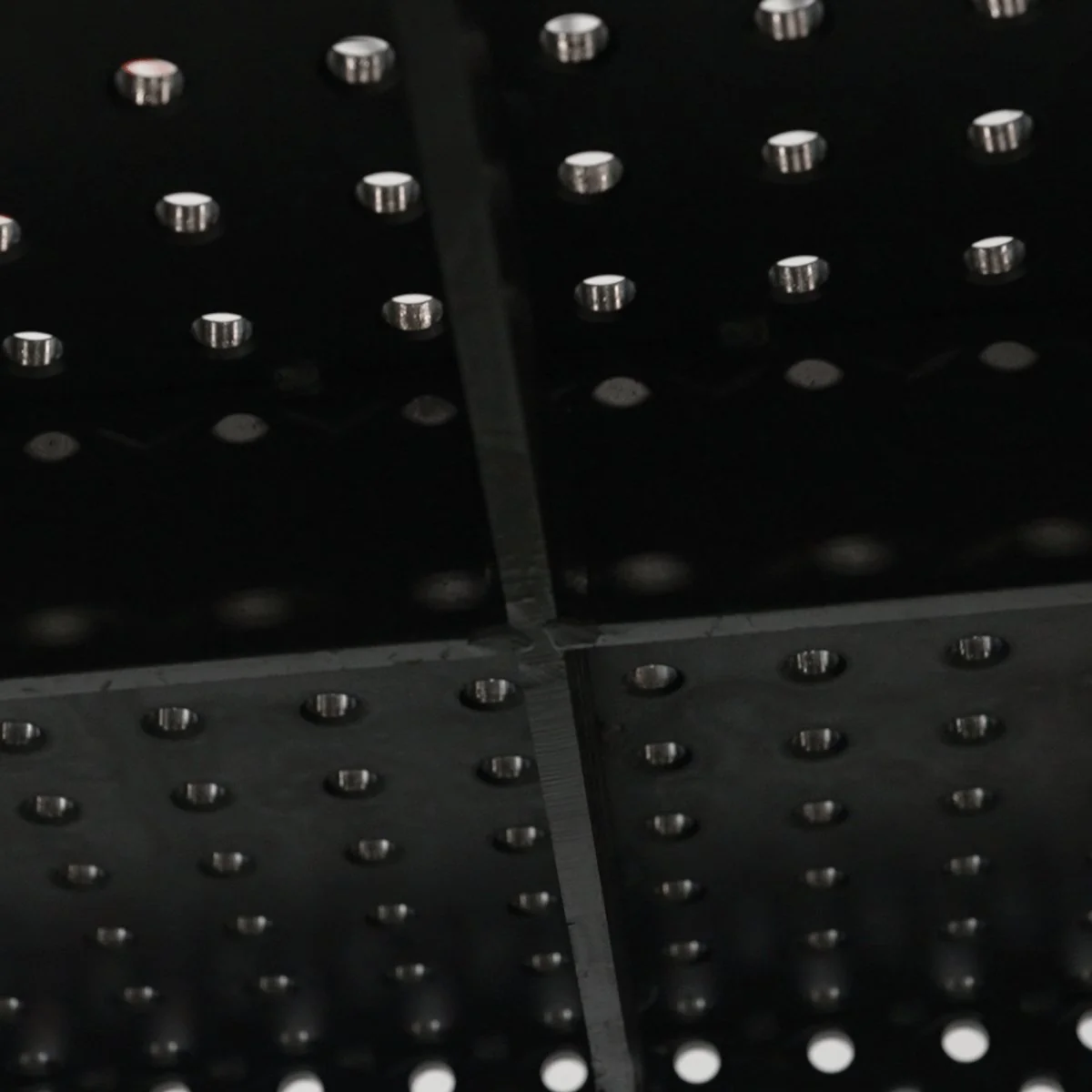

    Bottom of Structure has Reinforced Ribbing.
    \n
    7. \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\"\"
\n\n
\n
\n
\n
\n
\n
\n

\n
\n
\n
\n

Welding Table Leg Options

\n

Part Numbers, Specs and Pricing

\n
\n
\n
\n
\n
\n
\n
\n
\n

\n
\n
\n
\n

Welding Table Leg Options
Part Numbers, Specs and Pricing

\n
\n
\n
\n
\n
\n
\n
\n
\n
\"\"
\n\n
\n
\n
\n
\n
\n

Siegmund Welding Table Leg Options Chart

\n
\n
\n
\n
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
Leg TypeItem No.Capacity Per LegLeg HeightTable Height
\n
\n
\n

1. Standard Leg

\n
\n
\n		\n
\n
\n

US160858.X

\n
\n
\n		\n
\n
\n

2,200 lbs.

\n
\n
\n		\n
\n
\n

32\"

\n
\n
\n		\n
\n
\n

36\"

\n
\n
\n
\n
\n
\n

2. Height Adjustable Leg

\n
\n
\n		\n
\n
\n

US160877.XX

\n
\n
\n		\n
\n
\n

2,200 lbs.

\n
\n
\n		\n
\n
\n

22\"-38\"

\n
\n
\n		\n
\n
\n

26\"-42\"

\n
\n
\n
\n
\n
\n

3. Leg with Casters and
Locking Brakes

\n
\n
\n		\n
\n
\n

US160876.XX

\n
\n
\n		\n
\n
\n

440 lbs.

\n
\n
\n		\n
\n
\n

32\"

\n
\n
\n		\n
\n
\n

36\"

\n
\n
\n
\n
\n
\n

4. Height Adjustable Leg
with Casters and Locking Brakes

\n
\n
\n		\n
\n
\n

US160879.XX

\n
\n
\n		\n
\n
\n

440 lbs.

\n
\n
\n		\n
\n
\n

24\"-36\"

\n
\n
\n		\n
\n
\n

28\"-40\"

\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

Siegmund System 16 Welding Table Leg Options - Full Specifications

\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

1. Standard Siegmund Leg(s)

\n
    \n
  • \nItem No.: US160858.X
    • \n
  • \nLeg Height: 32\"
    • \n
  • \nTable Height: 36\"
    • \n
  • \nFine Adjustment: 1-5/8\"
    • \n
  • \nCapacity Per Table Leg: 2,200 lbs.
    • \n
\n
\n
\n
\n
\n
\n
\n

2. Height Adjustable Siegmund Leg(s)

\n
    \n
  • \nItem No.: US160877.XX
    • \n
  • \nLeg Height (Adjustable): 22\" - 38\"
    • \n
  • \nTable Height (Adjustable): 26\" - 42\"
    • \n
  • \nFine Adjustment: 1-5/8\"
    • \n
  • \nCapacity Per Table Leg: 2,200 lbs.
    • \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

3. Siegmund Leg(s) with Casters and Locking Brakes

\n
    \n
  • \nItem No.: US160876.XX
    • \n
  • \nLeg Height: 32\"
    • \n
  • \nTable Height: 36\"
    • \n
  • \nFine Adjustment: 1-3/16\"
    • \n
  • \nCapacity Per Table Leg: 440 lbs.
    • \n
\n
\n
\n
\n
\n
\n
\n

4. Height Adjustable Leg(s) with Casters and Locking Brakes

\n
    \n
  • \nItem No.: US160879.XX
    • \n
  • \nLeg Height (Adjustable): 24\" - 36\"
    • \n
  • \nTable Height (Adjustable): 28\" - 40\"
    • \n
  • \nFine Adjustment: 1-3/16\"
    • \n
  • \nCapacity Per Table Leg: 440 lbs.
    • \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

\n
\n
\n
\n
\n
\n\n\n\n","image":["/images/swagoffroadcustoms.shop/images/product/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1-1.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1-2.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1-3.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1-4.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1-5.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1-6.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1-7.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1-8.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1-9.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1-10.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1-11.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1-12.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1-13.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1-14.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1-15.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1-16.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1-17.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1-18.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1-19.jpg"],"sku":"system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1","brand":{"@type":"Brand","name":"SWAG Off Road"},"offers":{"@type":"AggregateOffer","lowPrice":1685.6,"highPrice":2272.55,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://swagoffroadcustoms.shop/products/system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2025-special-promotion-1","offerCount":4}}
System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1
HomeStore

System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1

System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1


The System 16 Welding Table Series is the ideal choice for fine detail applications.

All System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.


Items Included in Bundle #US168025.X7

for the Siegmund System 16 Welding Tables (35 Piece Bundle)

Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (5/8") Bore Holed Siegmund Imperial Series Welding Tables.


Accessories Included in
Set #5
for the Siegmund System 16 Welding Tables
(117 Pieces)

Total Weight of Set: 245 lbs.

Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (0.63") Bore Holed Siegmund Welding Tables.


Items Included
in Bundle #US168025.XD7
for the Siegmund System 16 Imperial Series Welding Tables
(35 Piece Bundle)

Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (5/8") Bore Holed Siegmund Imperial Series Welding Tables.

US160025.X7
Quantity: 1
3'x4' Imperial Series Welding Table
(Plasma Nitrided)

US160610.N
Quantity: 4
Professional Screw Clamp (Nitrided)

US160511
Quantity: 12
Short Fast Clamping Bolt (Burnished)

US160420.N
Quantity: 8
5" Universal Stop (Nitrided)

US160162.N
Quantity: 4
12" Stop and Clamping Square
(Nitrided)

US163999
Quantity: 1
Maintenance Set

  • The materials used are fundamental to the high level of hardness and long service life.
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.

Specs and Features

of the System 16, 8.7 Imperial Series Welding Tables


Specs & Features
of the System 16, 8.7 Imperial Series
Welding Tables

Welding Table Specs and Features:

  • Overall Tabletop Size: 3' x 4' (36" x 48")
  • Borehole Diameter: Ø 16mm (5/8")
  • Welding Table Series: Professional Extreme 8.7 Series
  • Welding Table Material Thickness: Approx. 7/16" to 1/2"
  • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Table Surface Hardness: 450-850 Vickers
  • Official Siegmund Welding Table Part No.: US160025.X7
  • Maximum Weight Load: 5,380 lbs. (Based on Even Distribution)
  • Approximate Table Weight: 486 lbs.
  1. Boreholes on the Surface are a 2"x2" Inch Grid Configuration.
  2. Boreholes have a diameter of 16mm (5/8"), Boreholes have a 1/16" Radius.
  3. Radius 1/10" on the table edges and 1/4" on the corners.
  4. Height of table side is 3-5/16" - Borehole in Diagonal Grid.
  5. INCH Scale Engraved on the Surface.
  6. Bottom of Structure has Reinforced Ribbing.

Welding Table Leg Options

Part Numbers, Specs and Pricing


Welding Table Leg Options
Part Numbers, Specs and Pricing

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height

1. Standard Leg

US160858.X

2,200 lbs.

32"

36"

2. Height Adjustable Leg

US160877.XX

2,200 lbs.

22"-38"

26"-42"

3. Leg with Casters and
Locking Brakes

US160876.XX

440 lbs.

32"

36"

4. Height Adjustable Leg
with Casters and Locking Brakes

US160879.XX

440 lbs.

24"-36"

28"-40"

Siegmund System 16 Welding Table Leg Options - Full Specifications

1. Standard Siegmund Leg(s)

  • Item No.: US160858.X
  • Leg Height: 32"
  • Table Height: 36"
  • Fine Adjustment: 1-5/8"
  • Capacity Per Table Leg: 2,200 lbs.

2. Height Adjustable Siegmund Leg(s)

  • Item No.: US160877.XX
  • Leg Height (Adjustable): 22" - 38"
  • Table Height (Adjustable): 26" - 42"
  • Fine Adjustment: 1-5/8"
  • Capacity Per Table Leg: 2,200 lbs.

3. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: US160876.XX
  • Leg Height: 32"
  • Table Height: 36"
  • Fine Adjustment: 1-3/16"
  • Capacity Per Table Leg: 440 lbs.

4. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: US160879.XX
  • Leg Height (Adjustable): 24" - 36"
  • Table Height (Adjustable): 28" - 40"
  • Fine Adjustment: 1-3/16"
  • Capacity Per Table Leg: 440 lbs.

Select Table Legs
From $1,685.60

Original: $4,816.00

-65%
System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1—

$4,816.00

$1,685.60

More Images

System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1 - Image 2
System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1 - Image 3
System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1 - Image 4
System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1 - Image 5
System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1 - Image 6
System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1 - Image 7
System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1 - Image 8
System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1 - Image 9
System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1 - Image 10
System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1 - Image 11
System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1 - Image 12
System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1 - Image 13
System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1 - Image 14
System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1 - Image 15
System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1 - Image 16
System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1 - Image 17
System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1 - Image 18
System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1 - Image 19

System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1


The System 16 Welding Table Series is the ideal choice for fine detail applications.

All System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.


Items Included in Bundle #US168025.X7

for the Siegmund System 16 Welding Tables (35 Piece Bundle)

Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (5/8") Bore Holed Siegmund Imperial Series Welding Tables.


Accessories Included in
Set #5
for the Siegmund System 16 Welding Tables
(117 Pieces)

Total Weight of Set: 245 lbs.

Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (0.63") Bore Holed Siegmund Welding Tables.


Items Included
in Bundle #US168025.XD7
for the Siegmund System 16 Imperial Series Welding Tables
(35 Piece Bundle)

Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (5/8") Bore Holed Siegmund Imperial Series Welding Tables.

US160025.X7
Quantity: 1
3'x4' Imperial Series Welding Table
(Plasma Nitrided)

US160610.N
Quantity: 4
Professional Screw Clamp (Nitrided)

US160511
Quantity: 12
Short Fast Clamping Bolt (Burnished)

US160420.N
Quantity: 8
5" Universal Stop (Nitrided)

US160162.N
Quantity: 4
12" Stop and Clamping Square
(Nitrided)

US163999
Quantity: 1
Maintenance Set

  • The materials used are fundamental to the high level of hardness and long service life.
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.

Specs and Features

of the System 16, 8.7 Imperial Series Welding Tables


Specs & Features
of the System 16, 8.7 Imperial Series
Welding Tables

Welding Table Specs and Features:

  • Overall Tabletop Size: 3' x 4' (36" x 48")
  • Borehole Diameter: Ø 16mm (5/8")
  • Welding Table Series: Professional Extreme 8.7 Series
  • Welding Table Material Thickness: Approx. 7/16" to 1/2"
  • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Table Surface Hardness: 450-850 Vickers
  • Official Siegmund Welding Table Part No.: US160025.X7
  • Maximum Weight Load: 5,380 lbs. (Based on Even Distribution)
  • Approximate Table Weight: 486 lbs.
  1. Boreholes on the Surface are a 2"x2" Inch Grid Configuration.
  2. Boreholes have a diameter of 16mm (5/8"), Boreholes have a 1/16" Radius.
  3. Radius 1/10" on the table edges and 1/4" on the corners.
  4. Height of table side is 3-5/16" - Borehole in Diagonal Grid.
  5. INCH Scale Engraved on the Surface.
  6. Bottom of Structure has Reinforced Ribbing.

Welding Table Leg Options

Part Numbers, Specs and Pricing


Welding Table Leg Options
Part Numbers, Specs and Pricing

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height

1. Standard Leg

US160858.X

2,200 lbs.

32"

36"

2. Height Adjustable Leg

US160877.XX

2,200 lbs.

22"-38"

26"-42"

3. Leg with Casters and
Locking Brakes

US160876.XX

440 lbs.

32"

36"

4. Height Adjustable Leg
with Casters and Locking Brakes

US160879.XX

440 lbs.

24"-36"

28"-40"

Siegmund System 16 Welding Table Leg Options - Full Specifications

1. Standard Siegmund Leg(s)

  • Item No.: US160858.X
  • Leg Height: 32"
  • Table Height: 36"
  • Fine Adjustment: 1-5/8"
  • Capacity Per Table Leg: 2,200 lbs.

2. Height Adjustable Siegmund Leg(s)

  • Item No.: US160877.XX
  • Leg Height (Adjustable): 22" - 38"
  • Table Height (Adjustable): 26" - 42"
  • Fine Adjustment: 1-5/8"
  • Capacity Per Table Leg: 2,200 lbs.

3. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: US160876.XX
  • Leg Height: 32"
  • Table Height: 36"
  • Fine Adjustment: 1-3/16"
  • Capacity Per Table Leg: 440 lbs.

4. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: US160879.XX
  • Leg Height (Adjustable): 24" - 36"
  • Table Height (Adjustable): 28" - 40"
  • Fine Adjustment: 1-3/16"
  • Capacity Per Table Leg: 440 lbs.

Product Information

Shipping & Returns

Description


The System 16 Welding Table Series is the ideal choice for fine detail applications.

All System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.


Items Included in Bundle #US168025.X7

for the Siegmund System 16 Welding Tables (35 Piece Bundle)

Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (5/8") Bore Holed Siegmund Imperial Series Welding Tables.


Accessories Included in
Set #5
for the Siegmund System 16 Welding Tables
(117 Pieces)

Total Weight of Set: 245 lbs.

Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (0.63") Bore Holed Siegmund Welding Tables.


Items Included
in Bundle #US168025.XD7
for the Siegmund System 16 Imperial Series Welding Tables
(35 Piece Bundle)

Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (5/8") Bore Holed Siegmund Imperial Series Welding Tables.

US160025.X7
Quantity: 1
3'x4' Imperial Series Welding Table
(Plasma Nitrided)

US160610.N
Quantity: 4
Professional Screw Clamp (Nitrided)

US160511
Quantity: 12
Short Fast Clamping Bolt (Burnished)

US160420.N
Quantity: 8
5" Universal Stop (Nitrided)

US160162.N
Quantity: 4
12" Stop and Clamping Square
(Nitrided)

US163999
Quantity: 1
Maintenance Set

  • The materials used are fundamental to the high level of hardness and long service life.
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.

Specs and Features

of the System 16, 8.7 Imperial Series Welding Tables


Specs & Features
of the System 16, 8.7 Imperial Series
Welding Tables

Welding Table Specs and Features:

  • Overall Tabletop Size: 3' x 4' (36" x 48")
  • Borehole Diameter: Ø 16mm (5/8")
  • Welding Table Series: Professional Extreme 8.7 Series
  • Welding Table Material Thickness: Approx. 7/16" to 1/2"
  • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Table Surface Hardness: 450-850 Vickers
  • Official Siegmund Welding Table Part No.: US160025.X7
  • Maximum Weight Load: 5,380 lbs. (Based on Even Distribution)
  • Approximate Table Weight: 486 lbs.
  1. Boreholes on the Surface are a 2"x2" Inch Grid Configuration.
  2. Boreholes have a diameter of 16mm (5/8"), Boreholes have a 1/16" Radius.
  3. Radius 1/10" on the table edges and 1/4" on the corners.
  4. Height of table side is 3-5/16" - Borehole in Diagonal Grid.
  5. INCH Scale Engraved on the Surface.
  6. Bottom of Structure has Reinforced Ribbing.

Welding Table Leg Options

Part Numbers, Specs and Pricing


Welding Table Leg Options
Part Numbers, Specs and Pricing

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height

1. Standard Leg

US160858.X

2,200 lbs.

32"

36"

2. Height Adjustable Leg

US160877.XX

2,200 lbs.

22"-38"

26"-42"

3. Leg with Casters and
Locking Brakes

US160876.XX

440 lbs.

32"

36"

4. Height Adjustable Leg
with Casters and Locking Brakes

US160879.XX

440 lbs.

24"-36"

28"-40"

Siegmund System 16 Welding Table Leg Options - Full Specifications

1. Standard Siegmund Leg(s)

  • Item No.: US160858.X
  • Leg Height: 32"
  • Table Height: 36"
  • Fine Adjustment: 1-5/8"
  • Capacity Per Table Leg: 2,200 lbs.

2. Height Adjustable Siegmund Leg(s)

  • Item No.: US160877.XX
  • Leg Height (Adjustable): 22" - 38"
  • Table Height (Adjustable): 26" - 42"
  • Fine Adjustment: 1-5/8"
  • Capacity Per Table Leg: 2,200 lbs.

3. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: US160876.XX
  • Leg Height: 32"
  • Table Height: 36"
  • Fine Adjustment: 1-3/16"
  • Capacity Per Table Leg: 440 lbs.

4. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: US160879.XX
  • Leg Height (Adjustable): 24" - 36"
  • Table Height (Adjustable): 28" - 40"
  • Fine Adjustment: 1-3/16"
  • Capacity Per Table Leg: 440 lbs.

System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2025 SPECIAL PROMOTION) - 1 | SWAG Off Road
