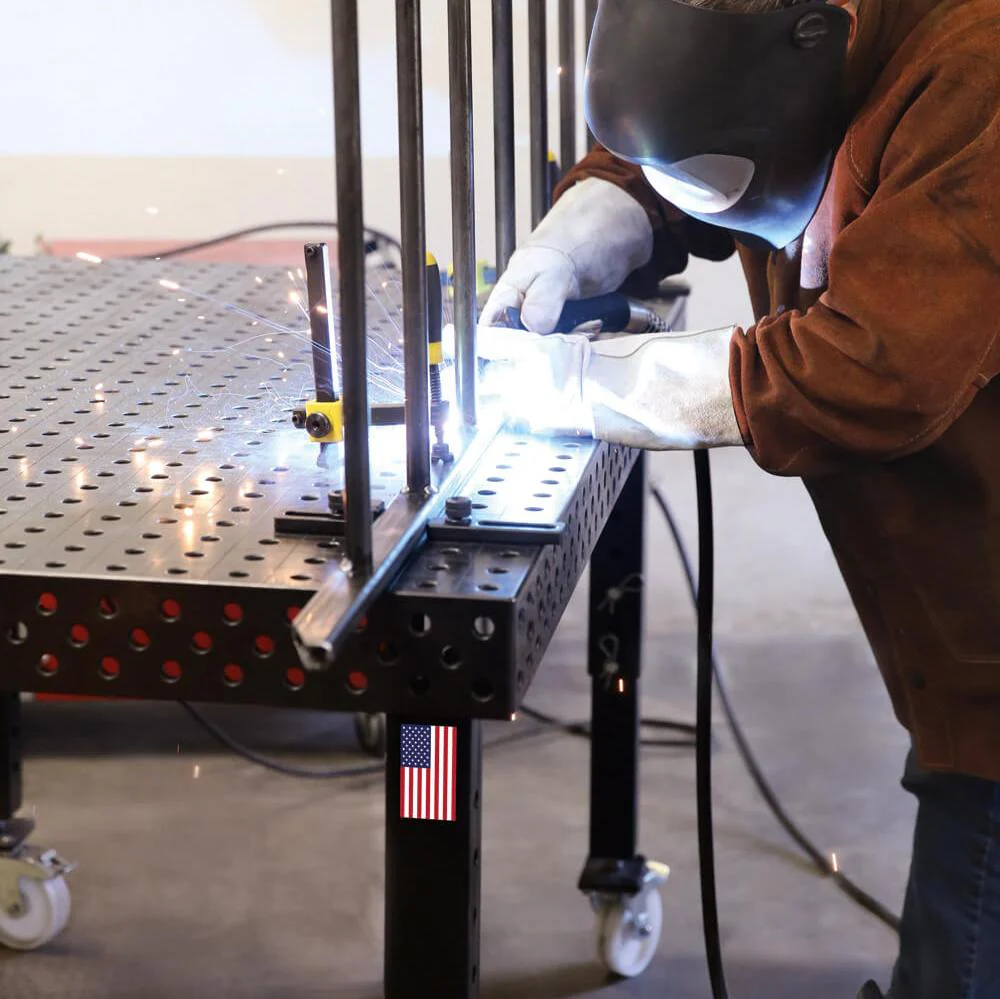

(Image is of a Siegmund System 16 8.7 Series, 3'x5' Welding Table with a Siegmund Accessory Kit. These items are not included. This is being shown as an example.)
\n
\n
\n\n
\n\n
\n\n![\"\"](\"https://i.shgcdn.com/dc0f5993-bd6b-4340-ae33-e19eb45d6a63/-/format/auto/-/preview/3000x3000/-/quality/lighter/\")
\n\n
\n\n
\n\n
\n(Image is of a Siegmund System 16 8.7 Series, 3'x5' Welding Table with a Siegmund Accessory Kit. These items are not included. This is being shown as an example.)
\n\n
\n
\n\n
\n\n
\n\n\nThe System 16 Welding Table Series is the ideal choice for fine detail applications.
\n
\n\nThe System 16 Welding Table Series is the ideal choice for fine detail applications.
\n
\n\n
\n\nAll System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
\n
\nAll System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
\n
\n\n
\n
\n\n
\n
\n\n
\n\n
\n- \n
- The materials used are fundamental to the high level of hardness and long service life. \n
- With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality. \n
- Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating. \n
\n
\n
\n\n
\n\n
\n\n![\"\"](\"https://i.shgcdn.com/035b9149-4a1e-469c-a96e-5a0866cd252c/-/format/auto/-/preview/3000x3000/-/quality/lighter/\")
\n\n
\n\n
\n\n
\n
\n\n
\n\n
\n\nSiegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.\n
\nThe hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.\n
\n
\n
\n\n![\"\"](\"https://i.shgcdn.com/e7622813-2531-4681-8d13-e3fbf70ca02d/-/format/auto/-/preview/3000x3000/-/quality/lighter/\")
\n\n
\n\n
\n
\n\n
\n\n
\n\n\n
\n\n
\n\n
\n\n
\nSpecs and Features
\nof the System 16, 8.7 Imperial Series Welding Tables
\n\n
\n\n
\n\n\n
\n\n
\n\n
\n\n
\nSpecs & Features
of the System 16, 8.7 Imperial Series
Welding Tables
\n
\n
\n\n
\n\n
\n\n![\"\"](\"https://i.shgcdn.com/ba63402f-08bc-4f38-9232-ffbdeb9dcc12/-/format/auto/-/preview/3000x3000/-/quality/lighter/\")
\n\n
\n\n
\n
\n\n
\n\n
\n\n
\nWelding Table Specs and Features:
\n- \n
- \nOverall Tabletop Size: 3' x 5' (36\" x 60\") \n
- \nBorehole Diameter: Ø 16mm (5/8\") \n
- \nWelding Table Series: Professional Extreme 8.7 Series \n
- \nWelding Table Material Thickness: Approx. 7/16\" to 1/2\" \n
- \nWelding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated \n
- \nTable Surface Hardness: 450-850 Vickers \n
- \nOfficial Siegmund Welding Table Part No.: US160070.X7 \n
- \nMaximum Weight Load: 5,255 lbs. (Based on Even Distribution) \n
- \nApproximate Table Weight: 611 lbs. \n
- \n
- Boreholes on the Surface are a 2\"x2\" Inch Grid Configuration. \n
- Boreholes have a diameter of 16mm (5/8\"), Boreholes have a 1/16\" Radius. \n
- Radius 1/10\" on the table edges and 1/4\" on the corners. \n
- Height of table side is 3-5/16\" - Borehole in Diagonal Grid. \n
- INCH Scale Engraved on the Surface. \n
- \nBottom of the Structure has Reinforced Ribbing.\n \n
\n
\n
\n\n
\n
\n\n
\n\n
\n\n\n
\n\n
\n\n
\n\n
\nWelding Table Leg Options
\nPart Numbers, Specs and Pricing
\n\n
\n\n
\n\n\n
\n\n
\n\n
\n\n
\nWelding Table Leg Options
Part Numbers, Specs and Pricing
\n
\n
\n\n
\n
\n\n
\n\n
\nSiegmund Welding Table Leg Options Chart
\n\n
\n\n\n\n
\n
\n| Leg Type | \nItem No. | \nCapacity Per Leg | \nLeg Height | \nTable Height | \nCost Per Leg | \n
| \n \n \n\n \n1. Standard Leg \n | \n\n \n \n\n \nUS160858.X \n | \n\n \n \n\n \n2,200 lbs. \n | \n\n \n \n\n \n32\" \n | \n\n \n \n\n \n36\" \n | \n\n \n \n\n \nIncluded \n | \n
| \n \n \n\n \n2. Height Adjustable Leg \n | \n\n \n \n\n \nUS160877.XX \n | \n\n \n \n\n \n2,200 lbs. \n | \n\n \n \n\n \n22\"-38\" \n | \n\n \n \n\n \n26\"-42\" \n | \n\n \n \n\n \n$85 \n | \n
| \n \n \n\n \n3. Leg with Casters and | \n\n \n \n\n \nUS160876.XX \n | \n\n \n \n\n \n440 lbs. \n | \n\n \n \n\n \n32\" \n | \n\n \n \n\n \n36\" \n | \n\n \n \n\n \n$94 \n | \n
| \n \n \n\n \n4. Height Adjustable Leg | \n\n \n \n\n \nUS160879.XX \n | \n\n \n \n\n \n440 lbs. \n | \n\n \n \n\n \n24\"-36\" \n | \n\n \n \n\n \n28\"-40\" \n | \n\n \n \n\n \n$142 \n | \n
\n
\n
\n\n
\n\n
\nSiegmund System 16 Welding Table Leg Options - Full Specifications
\n\n
\n
\n\n
\n\n
\n\n
\n\n
\n\n
\n1. Standard Siegmund Leg(s)
\n- \n
- \nItem No.: US160858.X \n
- \nLeg Height: 32\" \n
- \nTable Height: 36\" \n
- \nFine Adjustment: 1-5/8\" \n
- \nCapacity Per Table Leg: 2,200 lbs. \n
- \nCost Per Leg: $0 (Included with Welding Table as a Standard) \n
- \nCost Per 4 Leg Set: $0 (Included with Welding Table as a Standard) \n
\n
\n\n
\n\n
\n2. Height Adjustable Siegmund Leg(s)
\n- \n
- \nItem No.: US160877.XX \n
- \nLeg Height (Adjustable): 22\" - 38\" \n
- \nTable Height (Adjustable): 26\" - 42\" \n
- \nFine Adjustment: 1-5/8\" \n
- \nCapacity Per Table Leg: 2,200 lbs. \n
- \nCost Per Leg: $85 \n
- \nCost Per 4 Leg Set: $340 \n
\n
\n\n
\n\n
\n\n
\n\n
\n3. Siegmund Leg(s) with Casters and Locking Brakes
\n- \n
- \nItem No.: US160876.XX \n
- \nLeg Height: 32\" \n
- \nTable Height: 36\" \n
- \nFine Adjustment: 1-3/16\" \n
- \nCapacity Per Table Leg: 440 lbs. \n
- \nCost Per Leg: $94 \n
- \nCost Per 4 Leg Set: $376 \n
\n
\n\n
\n\n
\n4. Height Adjustable Leg(s) with Casters and Locking Brakes
\n- \n
- \nItem No.: US160879.XX \n
- \nLeg Height (Adjustable): 24\" - 36\" \n
- \nTable Height (Adjustable): 28\" - 40\" \n
- \nFine Adjustment: 1-3/16\" \n
- \nCapacity Per Table Leg: 440 lbs. \n
- \nCost Per Leg: $142 \n
- \nCost Per 4 Leg Set: $568 \n
\n
\n
\n\n
\n\n\n\n","image":["/images/swagoffroadcustoms.shop/images/product/system-16-3x5-36x60-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1-1.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x5-36x60-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1-2.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x5-36x60-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1-3.jpg","/images/swagoffroadcustoms.shop/images/product/system-16-3x5-36x60-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1-4.jpg"],"sku":"system-16-3x5-36x60-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1","brand":{"@type":"Brand","name":"SWAG Off Road"},"offers":{"@type":"AggregateOffer","lowPrice":1677.9,"highPrice":1925.7,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://swagoffroadcustoms.shop/products/system-16-3x5-36x60-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1","offerCount":4}}\n
\n\n
\n\n
\n\n\n
\n
HomeStore
System 16 3'x5' (36"x60") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1
System 16 3'x5' (36"x60") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1
The System 16 Welding Table Series is the ideal choice for fine detail applications.
All System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
- The materials used are fundamental to the high level of hardness and long service life.
- With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
- Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.
Specs and Features
of the System 16, 8.7 Imperial Series Welding Tables
Specs & Features
of the System 16, 8.7 Imperial Series
Welding Tables
Welding Table Specs and Features:
- Overall Tabletop Size: 3' x 5' (36" x 60")
- Borehole Diameter: Ø 16mm (5/8")
- Welding Table Series: Professional Extreme 8.7 Series
- Welding Table Material Thickness: Approx. 7/16" to 1/2"
- Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
- Table Surface Hardness: 450-850 Vickers
- Official Siegmund Welding Table Part No.: US160070.X7
- Maximum Weight Load: 5,255 lbs. (Based on Even Distribution)
- Approximate Table Weight: 611 lbs.
- Boreholes on the Surface are a 2"x2" Inch Grid Configuration.
- Boreholes have a diameter of 16mm (5/8"), Boreholes have a 1/16" Radius.
- Radius 1/10" on the table edges and 1/4" on the corners.
- Height of table side is 3-5/16" - Borehole in Diagonal Grid.
- INCH Scale Engraved on the Surface.
-
Bottom of the Structure has Reinforced Ribbing.
Welding Table Leg Options
Part Numbers, Specs and Pricing
Welding Table Leg Options
Part Numbers, Specs and Pricing
Siegmund Welding Table Leg Options Chart
| Leg Type | Item No. | Capacity Per Leg | Leg Height | Table Height | Cost Per Leg |
|
1. Standard Leg |
US160858.X |
2,200 lbs. |
32" |
36" |
Included |
|
2. Height Adjustable Leg |
US160877.XX |
2,200 lbs. |
22"-38" |
26"-42" |
$85 |
|
3. Leg with Casters and |
US160876.XX |
440 lbs. |
32" |
36" |
$94 |
|
4. Height Adjustable Leg |
US160879.XX |
440 lbs. |
24"-36" |
28"-40" |
$142 |
Siegmund System 16 Welding Table Leg Options - Full Specifications
1. Standard Siegmund Leg(s)
- Item No.: US160858.X
- Leg Height: 32"
- Table Height: 36"
- Fine Adjustment: 1-5/8"
- Capacity Per Table Leg: 2,200 lbs.
- Cost Per Leg: $0 (Included with Welding Table as a Standard)
- Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)
2. Height Adjustable Siegmund Leg(s)
- Item No.: US160877.XX
- Leg Height (Adjustable): 22" - 38"
- Table Height (Adjustable): 26" - 42"
- Fine Adjustment: 1-5/8"
- Capacity Per Table Leg: 2,200 lbs.
- Cost Per Leg: $85
- Cost Per 4 Leg Set: $340
3. Siegmund Leg(s) with Casters and Locking Brakes
- Item No.: US160876.XX
- Leg Height: 32"
- Table Height: 36"
- Fine Adjustment: 1-3/16"
- Capacity Per Table Leg: 440 lbs.
- Cost Per Leg: $94
- Cost Per 4 Leg Set: $376
4. Height Adjustable Leg(s) with Casters and Locking Brakes
- Item No.: US160879.XX
- Leg Height (Adjustable): 24" - 36"
- Table Height (Adjustable): 28" - 40"
- Fine Adjustment: 1-3/16"
- Capacity Per Table Leg: 440 lbs.
- Cost Per Leg: $142
- Cost Per 4 Leg Set: $568
Select Table Legs
From $1,677.90
Original: $4,794.00
-65%System 16 3'x5' (36"x60") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1—
$4,794.00
$1,677.90More Images
System 16 3'x5' (36"x60") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1
(Image is of a Siegmund System 16 8.7 Series, 3'x5' Welding Table with a Siegmund Accessory Kit. These items are not included. This is being shown as an example.)
The System 16 Welding Table Series is the ideal choice for fine detail applications.
All System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
- The materials used are fundamental to the high level of hardness and long service life.
- With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
- Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.
Specs and Features
of the System 16, 8.7 Imperial Series Welding Tables
Specs & Features
of the System 16, 8.7 Imperial Series
Welding Tables
Welding Table Specs and Features:
- Overall Tabletop Size: 3' x 5' (36" x 60")
- Borehole Diameter: Ø 16mm (5/8")
- Welding Table Series: Professional Extreme 8.7 Series
- Welding Table Material Thickness: Approx. 7/16" to 1/2"
- Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
- Table Surface Hardness: 450-850 Vickers
- Official Siegmund Welding Table Part No.: US160070.X7
- Maximum Weight Load: 5,255 lbs. (Based on Even Distribution)
- Approximate Table Weight: 611 lbs.
- Boreholes on the Surface are a 2"x2" Inch Grid Configuration.
- Boreholes have a diameter of 16mm (5/8"), Boreholes have a 1/16" Radius.
- Radius 1/10" on the table edges and 1/4" on the corners.
- Height of table side is 3-5/16" - Borehole in Diagonal Grid.
- INCH Scale Engraved on the Surface.
-
Bottom of the Structure has Reinforced Ribbing.
Welding Table Leg Options
Part Numbers, Specs and Pricing
Welding Table Leg Options
Part Numbers, Specs and Pricing
Siegmund Welding Table Leg Options Chart
| Leg Type | Item No. | Capacity Per Leg | Leg Height | Table Height | Cost Per Leg |
|
1. Standard Leg |
US160858.X |
2,200 lbs. |
32" |
36" |
Included |
|
2. Height Adjustable Leg |
US160877.XX |
2,200 lbs. |
22"-38" |
26"-42" |
$85 |
|
3. Leg with Casters and |
US160876.XX |
440 lbs. |
32" |
36" |
$94 |
|
4. Height Adjustable Leg |
US160879.XX |
440 lbs. |
24"-36" |
28"-40" |
$142 |
Siegmund System 16 Welding Table Leg Options - Full Specifications
1. Standard Siegmund Leg(s)
- Item No.: US160858.X
- Leg Height: 32"
- Table Height: 36"
- Fine Adjustment: 1-5/8"
- Capacity Per Table Leg: 2,200 lbs.
- Cost Per Leg: $0 (Included with Welding Table as a Standard)
- Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)
2. Height Adjustable Siegmund Leg(s)
- Item No.: US160877.XX
- Leg Height (Adjustable): 22" - 38"
- Table Height (Adjustable): 26" - 42"
- Fine Adjustment: 1-5/8"
- Capacity Per Table Leg: 2,200 lbs.
- Cost Per Leg: $85
- Cost Per 4 Leg Set: $340
3. Siegmund Leg(s) with Casters and Locking Brakes
- Item No.: US160876.XX
- Leg Height: 32"
- Table Height: 36"
- Fine Adjustment: 1-3/16"
- Capacity Per Table Leg: 440 lbs.
- Cost Per Leg: $94
- Cost Per 4 Leg Set: $376
4. Height Adjustable Leg(s) with Casters and Locking Brakes
- Item No.: US160879.XX
- Leg Height (Adjustable): 24" - 36"
- Table Height (Adjustable): 28" - 40"
- Fine Adjustment: 1-3/16"
- Capacity Per Table Leg: 440 lbs.
- Cost Per Leg: $142
- Cost Per 4 Leg Set: $568
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description

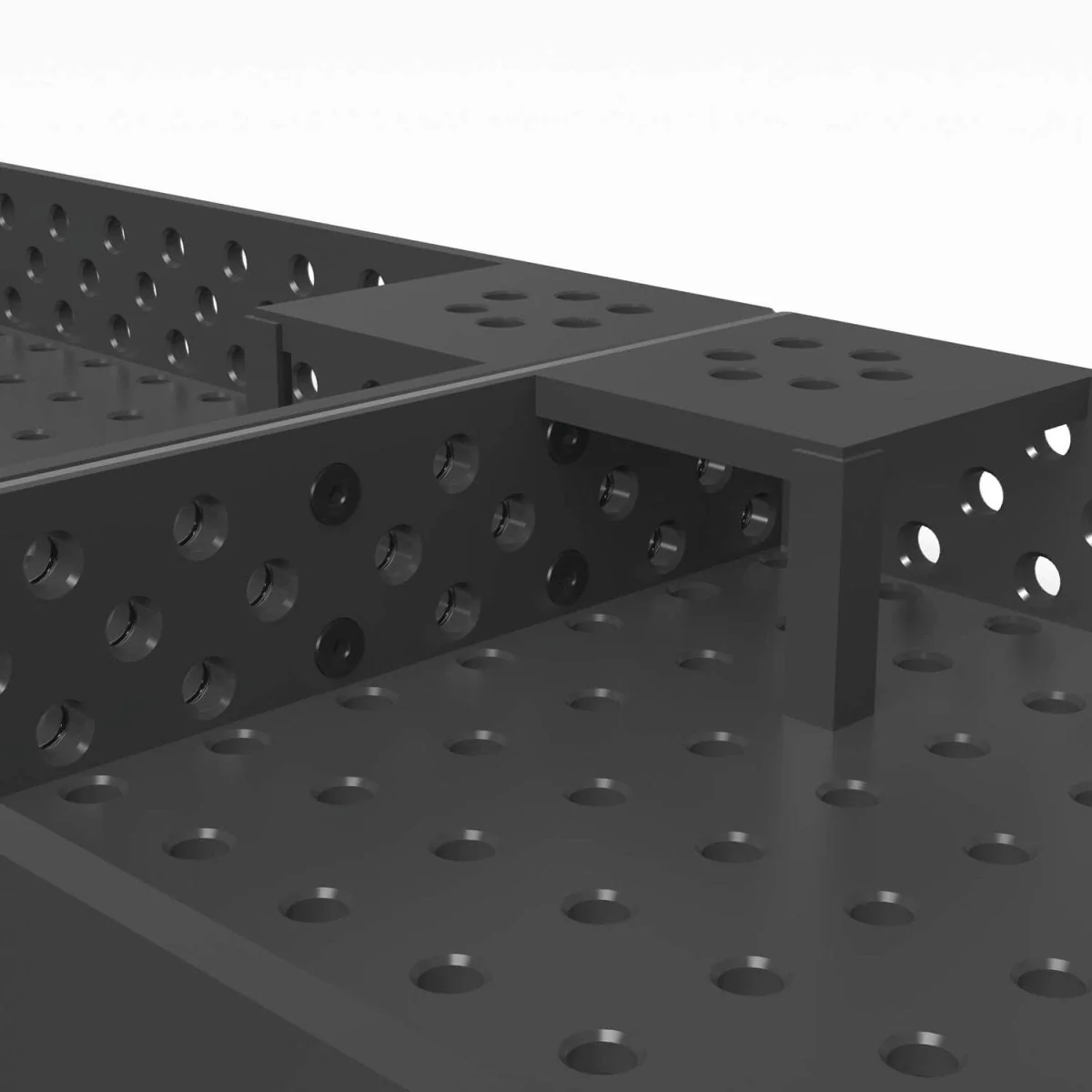

(Image is of a Siegmund System 16 8.7 Series, 3'x5' Welding Table with a Siegmund Accessory Kit. These items are not included. This is being shown as an example.)
The System 16 Welding Table Series is the ideal choice for fine detail applications.
All System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
- The materials used are fundamental to the high level of hardness and long service life.
- With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
- Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.
Specs and Features
of the System 16, 8.7 Imperial Series Welding Tables
Specs & Features
of the System 16, 8.7 Imperial Series
Welding Tables
Welding Table Specs and Features:
- Overall Tabletop Size: 3' x 5' (36" x 60")
- Borehole Diameter: Ø 16mm (5/8")
- Welding Table Series: Professional Extreme 8.7 Series
- Welding Table Material Thickness: Approx. 7/16" to 1/2"
- Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
- Table Surface Hardness: 450-850 Vickers
- Official Siegmund Welding Table Part No.: US160070.X7
- Maximum Weight Load: 5,255 lbs. (Based on Even Distribution)
- Approximate Table Weight: 611 lbs.
- Boreholes on the Surface are a 2"x2" Inch Grid Configuration.
- Boreholes have a diameter of 16mm (5/8"), Boreholes have a 1/16" Radius.
- Radius 1/10" on the table edges and 1/4" on the corners.
- Height of table side is 3-5/16" - Borehole in Diagonal Grid.
- INCH Scale Engraved on the Surface.
-
Bottom of the Structure has Reinforced Ribbing.
Welding Table Leg Options
Part Numbers, Specs and Pricing
Welding Table Leg Options
Part Numbers, Specs and Pricing
Siegmund Welding Table Leg Options Chart
| Leg Type | Item No. | Capacity Per Leg | Leg Height | Table Height | Cost Per Leg |
|
1. Standard Leg |
US160858.X |
2,200 lbs. |
32" |
36" |
Included |
|
2. Height Adjustable Leg |
US160877.XX |
2,200 lbs. |
22"-38" |
26"-42" |
$85 |
|
3. Leg with Casters and |
US160876.XX |
440 lbs. |
32" |
36" |
$94 |
|
4. Height Adjustable Leg |
US160879.XX |
440 lbs. |
24"-36" |
28"-40" |
$142 |
Siegmund System 16 Welding Table Leg Options - Full Specifications
1. Standard Siegmund Leg(s)
- Item No.: US160858.X
- Leg Height: 32"
- Table Height: 36"
- Fine Adjustment: 1-5/8"
- Capacity Per Table Leg: 2,200 lbs.
- Cost Per Leg: $0 (Included with Welding Table as a Standard)
- Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)
2. Height Adjustable Siegmund Leg(s)
- Item No.: US160877.XX
- Leg Height (Adjustable): 22" - 38"
- Table Height (Adjustable): 26" - 42"
- Fine Adjustment: 1-5/8"
- Capacity Per Table Leg: 2,200 lbs.
- Cost Per Leg: $85
- Cost Per 4 Leg Set: $340
3. Siegmund Leg(s) with Casters and Locking Brakes
- Item No.: US160876.XX
- Leg Height: 32"
- Table Height: 36"
- Fine Adjustment: 1-3/16"
- Capacity Per Table Leg: 440 lbs.
- Cost Per Leg: $94
- Cost Per 4 Leg Set: $376
4. Height Adjustable Leg(s) with Casters and Locking Brakes
- Item No.: US160879.XX
- Leg Height (Adjustable): 24" - 36"
- Table Height (Adjustable): 28" - 40"
- Fine Adjustment: 1-3/16"
- Capacity Per Table Leg: 440 lbs.
- Cost Per Leg: $142
- Cost Per 4 Leg Set: $568
