\nThe System 28 Welding Table Series was created with Heavy Duty Applications in Mind.
\n

\n
\n
\n
\n
\n

All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
\n

\n
\n
\n
\n
\n
\n
\n
\n
\n
\"\"
\n\n
\n
\n
\n
\"\"
\n\n
\n
\n
    \n
  • The materials used are fundamental to the high level of hardness and long service life.
    • \n
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
    • \n
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
    • \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\"\"
\n\n
\n
\n
\n
\n
\n
\n
\n
\nSiegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.\n
\n
\n
\n
\n
\n
\n
\n
\n
\"\"
\n\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

\n
\n
\n
\n

Specs and Features

\n

of the System 28, 8.7 Imperial Series Welding Tables

\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

\n
\n
\n
\n

Specs & Features
of the System 28, 8.7 Imperial Series
Welding Tables

\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\"\"
\n\n
\n
\n
\n
\n
\n
\n
\n

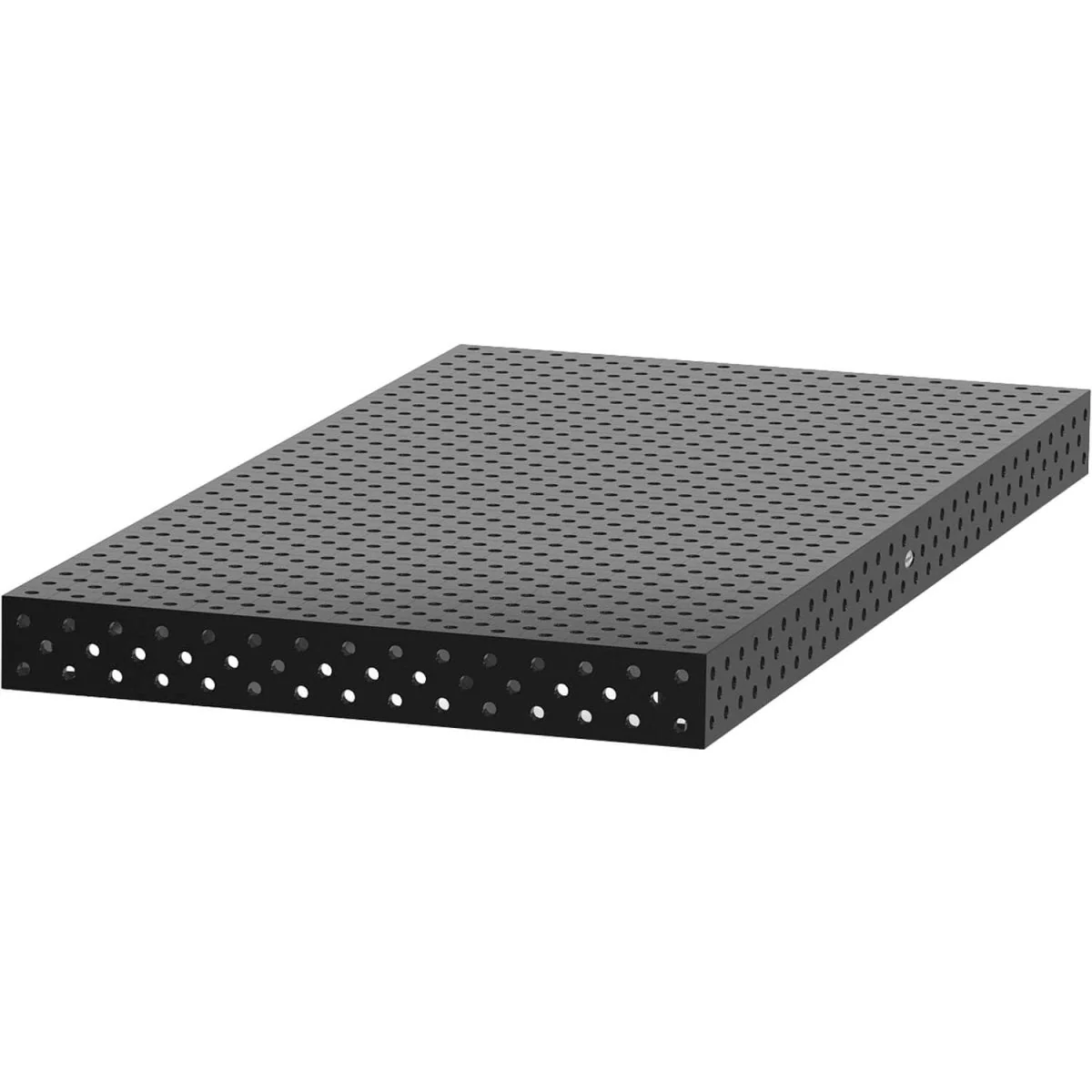

Welding Table Specs and Features:

\n
    \n
  • \nOverall Tabletop Size: 5' x 10' (60\" x 120\")
    • \n
  • \nBorehole Diameter: Ø 28mm (1-1/10\")
    • \n
  • \nWelding Table Series: Professional Extreme 8.7 Series
    • \n
  • \nWelding Table Material Thickness: Approx. 15/16\" to 1-1/16\"
    • \n
  • \nWelding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
    • \n
  • \nTable Surface Hardness: 450-850 Vickers
    • \n
  • \nOfficial Siegmund Welding Table Part No.: US280040.XD7
    • \n
  • \nMaximum Weight Load: 14,310 lbs. (Based on Even Distribution)
    • \n
  • \nApproximate Table Weight: 3,290 lbs.
    • \n
\n
    \n

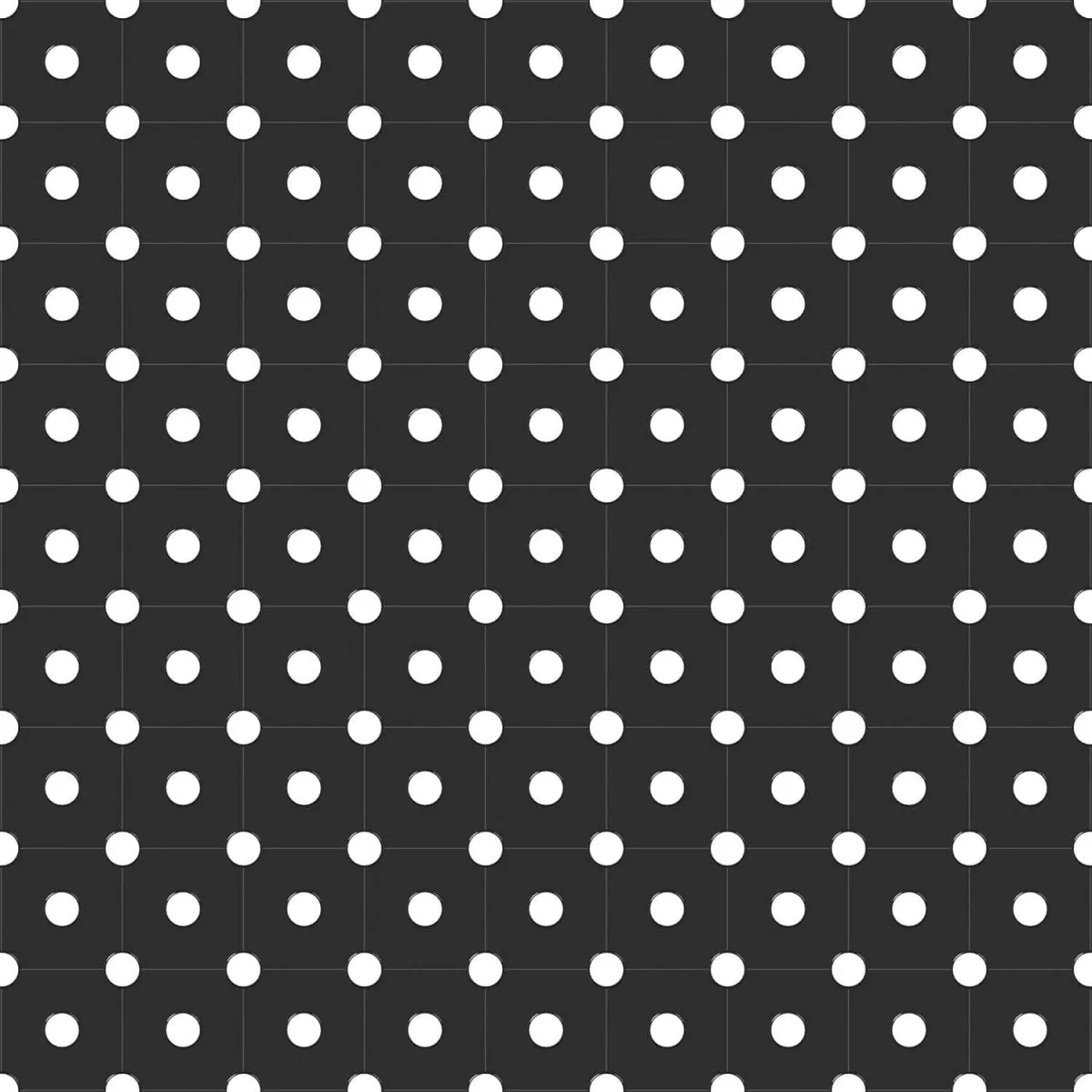

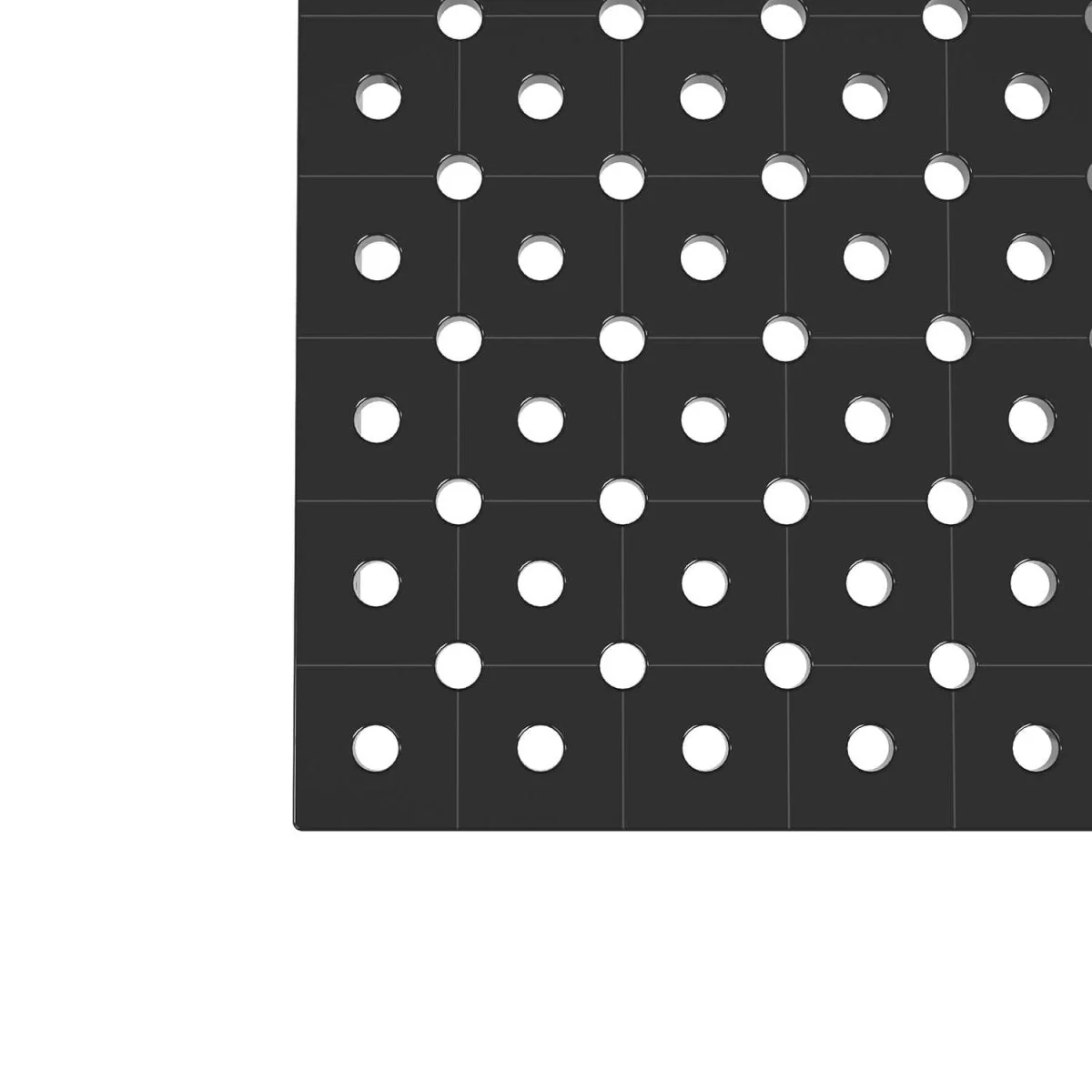

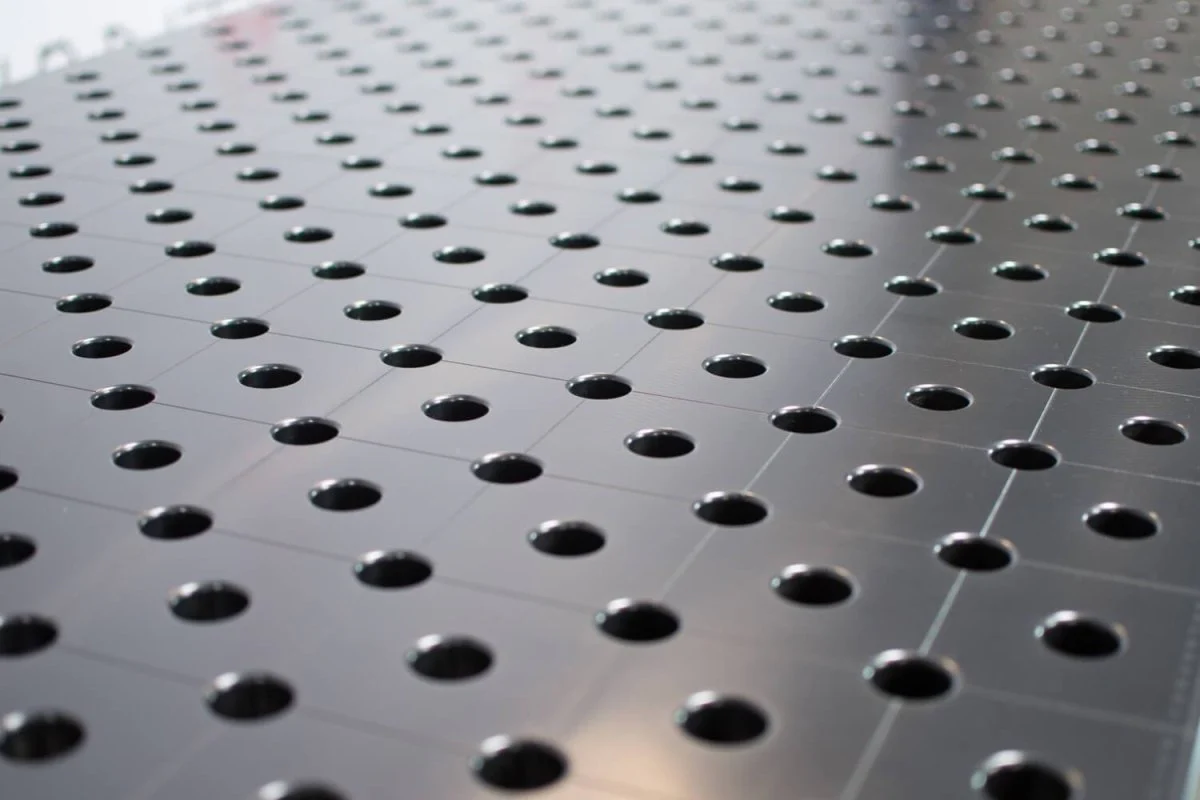

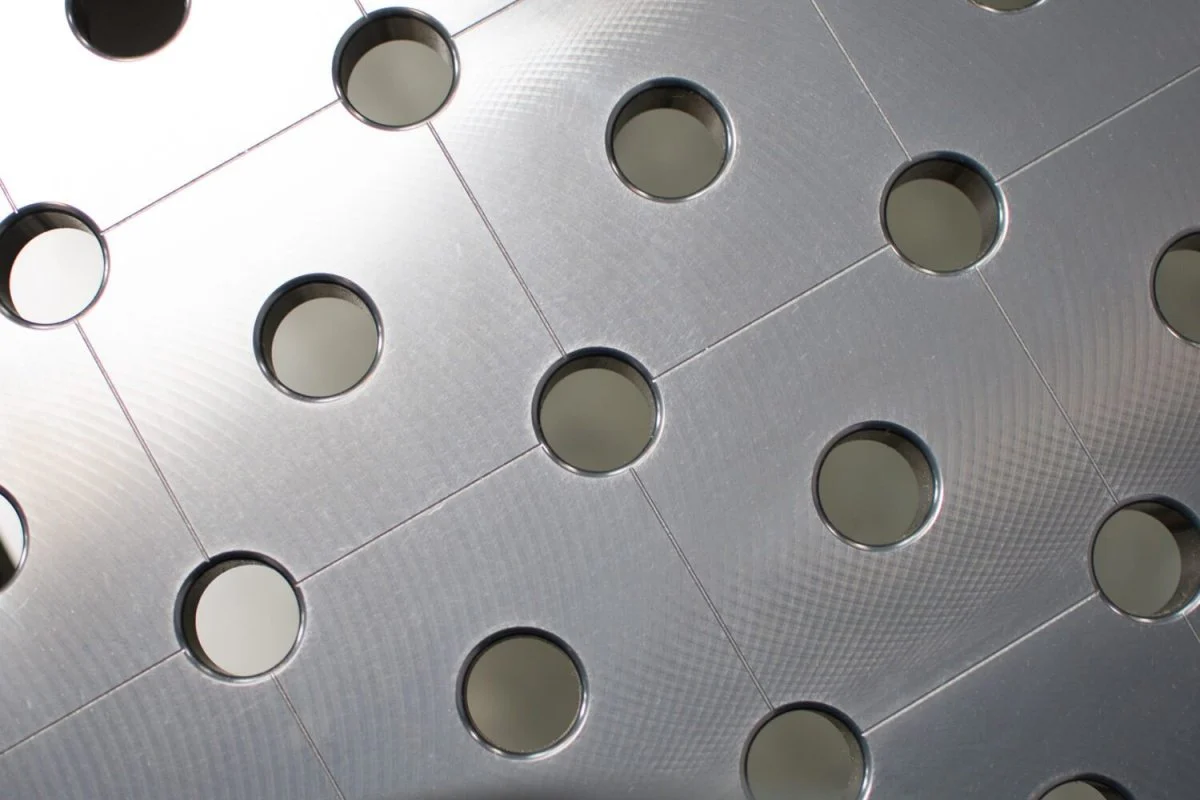

  1. Boreholes on the Surface are in a Diagonal Grid Configuration.
    2. \n
  2. Boreholes have a diameter of 28mm (1-1/10\"), Boreholes have a 1/10\" Radius.
    3. \n

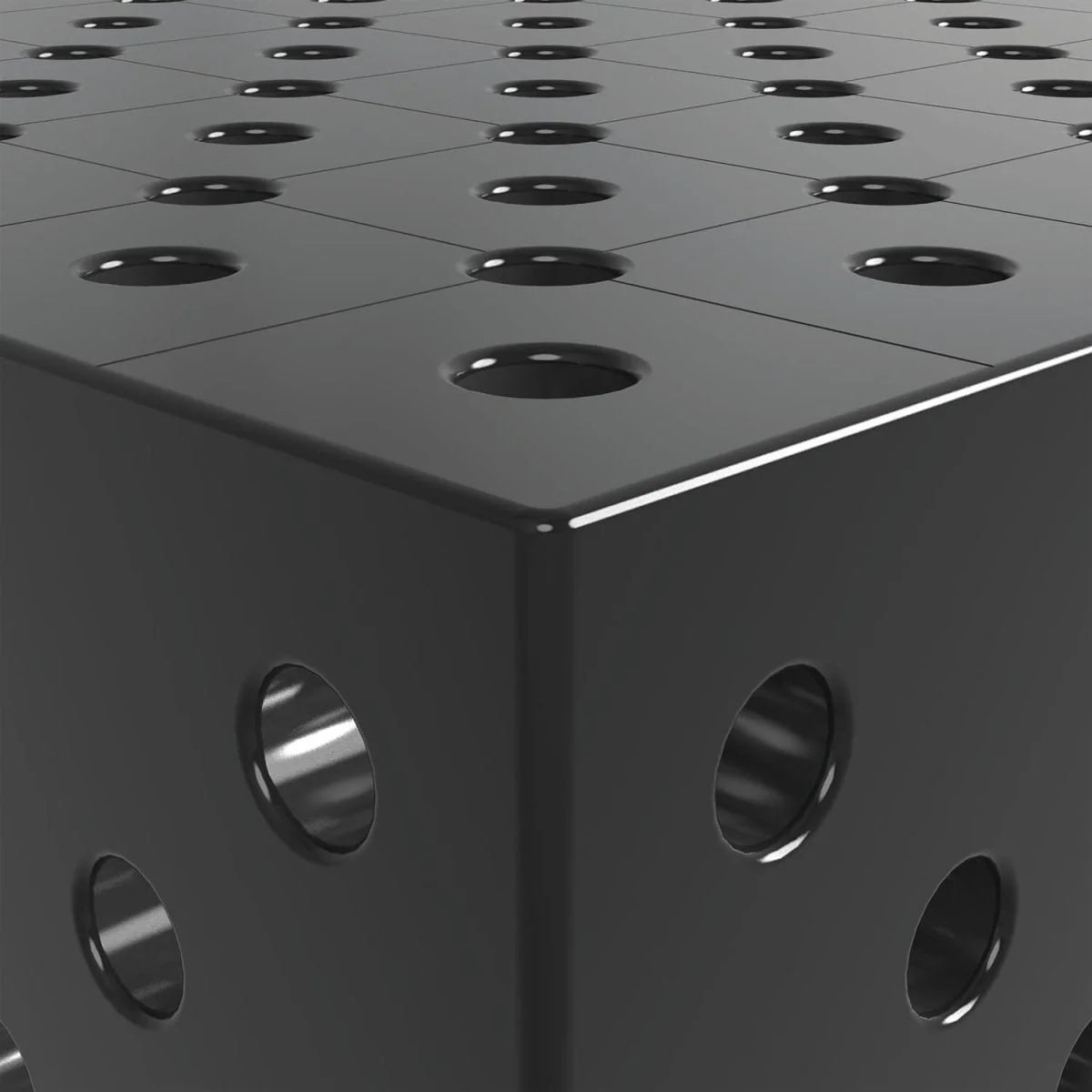

  3. Radius 1/10\" on the table edges and 1/4\" on the corners.
    4. \n
  4. Height of table side is 7-7/8\" - Borehole in Diagonal Grid.
    5. \n
  5. INCH Scale Engraved on the Surface.
    6. \n
  6. \n

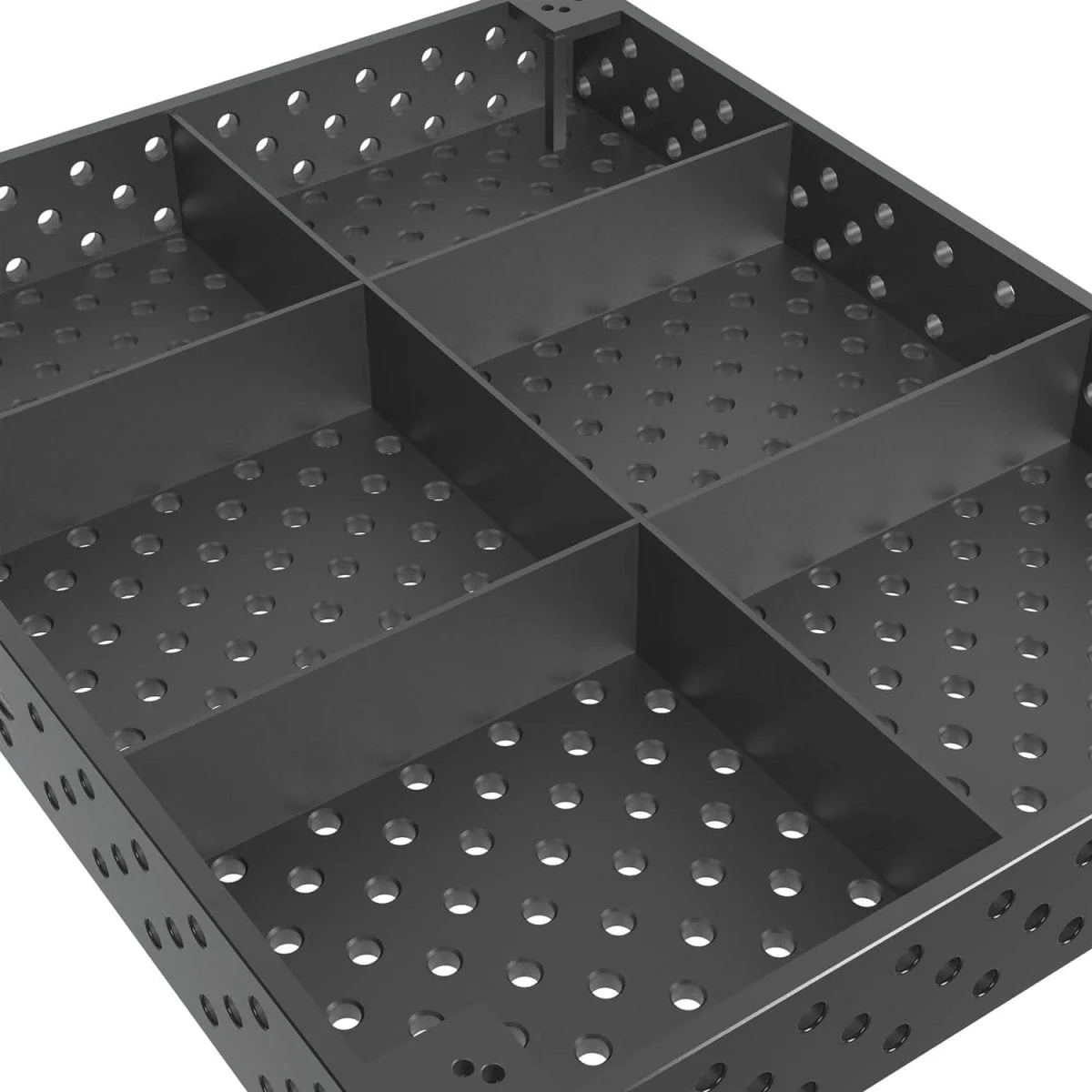

    Bottom of Structure has Reinforced Ribbing.
    \n
    7. \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\"\"
\n\n
\n
\n
\n
\n
\n
\n

\n
\n
\n
\n

Welding Table Leg Options

\n

Part Numbers, Specs and Pricing

\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

\n
\n
\n
\n

Welding Table Leg Options
Part Numbers, Specs and Pricing

\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\"\"
\n\n
\n
\n
\n
\n
\n

Siegmund Welding Table Leg Options Chart

\n
\n
\n
\n
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
Leg TypeItem No.Capacity Per LegLeg HeightTable HeightCost Per Leg
\n
\n
\n

1. Standard Leg

\n
\n
\n		\n
\n
\n

US280858.X

\n
\n
\n		\n
\n
\n

4,400 lbs.

\n
\n
\n		\n
\n
\n

28\"

\n
\n
\n		\n
\n
\n

36\"

\n
\n
\n		\n
\n
\n

Included

\n
\n
\n
\n
\n
\n

2. Height Adjustable Leg

\n
\n
\n		\n
\n
\n

US280877.XX

\n
\n
\n		\n
\n
\n

4,400 lbs.

\n
\n
\n		\n
\n
\n

22\"-36\"

\n
\n
\n		\n
\n
\n

30\"-44\"

\n
\n
\n		\n
\n
\n

$124

\n
\n
\n
\n
\n
\n

3. Leg with Casters and
Locking Brakes

\n
\n
\n		\n
\n
\n

US280876.XX

\n
\n
\n		\n
\n
\n

1,760 lbs.

\n
\n
\n		\n
\n
\n

36\"

\n
\n
\n		\n
\n
\n

36\"

\n
\n
\n		\n
\n
\n

$156

\n
\n
\n
\n
\n
\n

4. Height Adjustable Leg
with Casters and Locking Brakes

\n
\n
\n		\n
\n
\n

US280879.XX

\n
\n
\n		\n
\n
\n

1,760 lbs.

\n
\n
\n		\n
\n
\n

22\"-30\"

\n
\n
\n		\n
\n
\n

30\"-38\"

\n
\n
\n		\n
\n
\n

$202

\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

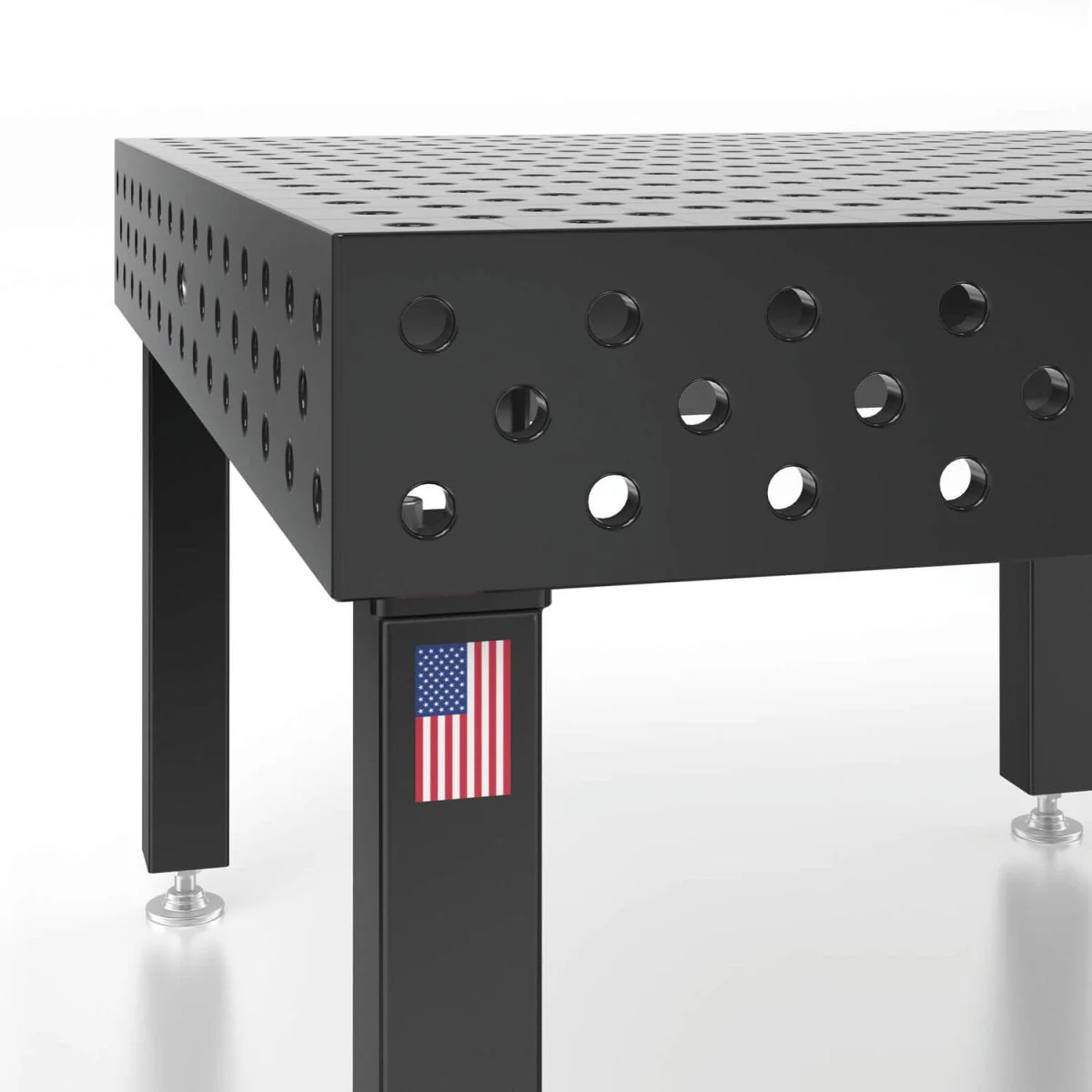

Siegmund System 28 Welding Table Leg Options - Full Specifications

\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

1. Standard Siegmund Leg(s)

\n
    \n
  • \nItem No.: US280858.X
    • \n
  • \nLeg Height: 28\"
    • \n
  • \nTable Height: 36\"
    • \n

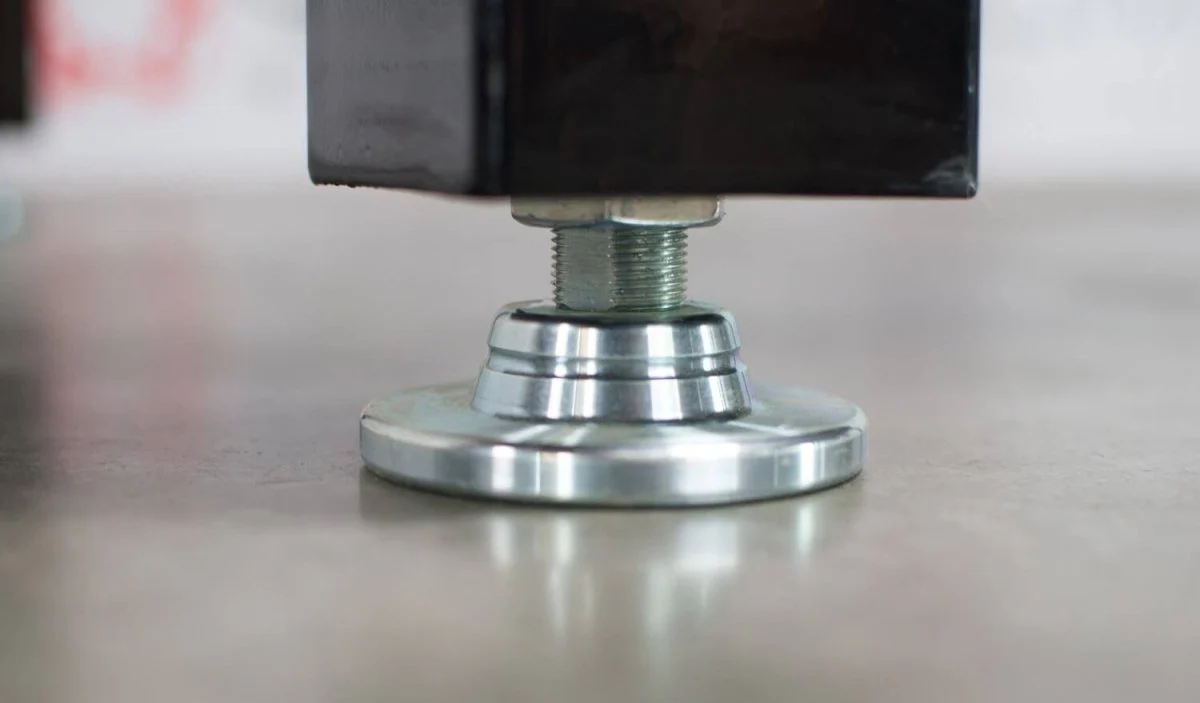

  • \nFine Adjustment: 2\"
    • \n
  • \nCapacity Per Table Leg: 4,400 lbs.
    • \n
  • \nCost Per Leg: $0 (Included with Welding Table as a Standard)
    • \n
  • \nCost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)
    • \n
\n
\n
\n
\n
\n
\n
\n

2. Height Adjustable Siegmund Leg(s)

\n
    \n
  • \nItem No.: US280877.XX
    • \n
  • \nLeg Height (Adjustable): 22\" - 36\"
    • \n
  • \nTable Height (Adjustable): 30\" - 44\"
    • \n
  • \nFine Adjustment: 2\"
    • \n
  • \nCapacity Per Table Leg: 4,400 lbs.
    • \n
  • \nCost Per Leg: $124
    • \n
  • \nCost Per 6 Leg Set: $744
    • \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

3. Siegmund Leg(s) with Casters and Locking Brakes

\n
    \n
  • \nItem No.: US280876.XX
    • \n
  • \nLeg Height: 28\"
    • \n
  • \nTable Height: 36\"
    • \n
  • \nFine Adjustment: 13/16\"
    • \n
  • \nCapacity Per Table Leg: 1,760 lbs.
    • \n
  • \nCost Per Leg: $156
    • \n
  • \nCost Per 6 Leg Set: $936
    • \n
\n
\n
\n
\n
\n
\n
\n

4. Height Adjustable Leg(s) with Casters and Locking Brakes

\n
    \n
  • \nItem No.: US280879.XX
    • \n
  • \nLeg Height (Adjustable): 22\" - 30\"
    • \n
  • \nTable Height (Adjustable): 30\" - 38\"
    • \n
  • \nFine Adjustment: 13/16\"
    • \n
  • \nCapacity Per Table Leg: 1,760 lbs.
    • \n
  • \nCost Per Leg: $202
    • \n
  • \nCost Per 6 Leg Set: $1,212
    • \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

\n
\n
\n
\n
\n
\n\n\n\n","image":["/images/swagoffroadcustoms.shop/images/product/system-28-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1-1.jpg","/images/swagoffroadcustoms.shop/images/product/system-28-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1-2.jpg","/images/swagoffroadcustoms.shop/images/product/system-28-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1-3.jpg","/images/swagoffroadcustoms.shop/images/product/system-28-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1-4.jpg","/images/swagoffroadcustoms.shop/images/product/system-28-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1-5.jpg","/images/swagoffroadcustoms.shop/images/product/system-28-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1-6.jpg","/images/swagoffroadcustoms.shop/images/product/system-28-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1-7.jpg","/images/swagoffroadcustoms.shop/images/product/system-28-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1-8.jpg","/images/swagoffroadcustoms.shop/images/product/system-28-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1-9.jpg","/images/swagoffroadcustoms.shop/images/product/system-28-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1-10.jpg","/images/swagoffroadcustoms.shop/images/product/system-28-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1-11.jpg","/images/swagoffroadcustoms.shop/images/product/system-28-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1-12.jpg","/images/swagoffroadcustoms.shop/images/product/system-28-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1-13.jpg","/images/swagoffroadcustoms.shop/images/product/system-28-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1-14.jpg","/images/swagoffroadcustoms.shop/images/product/system-28-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1-15.jpg"],"sku":"system-28-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1","brand":{"@type":"Brand","name":"SWAG Off Road"},"offers":{"@type":"AggregateOffer","lowPrice":5838.7,"highPrice":6382.25,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://swagoffroadcustoms.shop/products/system-28-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1","offerCount":4}}
System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1
HomeStore

System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1

System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1


The System 28 Welding Table Series was created with Heavy Duty Applications in Mind.

All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

  • The materials used are fundamental to the high level of hardness and long service life.
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.

Specs and Features

of the System 28, 8.7 Imperial Series Welding Tables


Specs & Features
of the System 28, 8.7 Imperial Series
Welding Tables

Welding Table Specs and Features:

  • Overall Tabletop Size: 5' x 10' (60" x 120")
  • Borehole Diameter: Ø 28mm (1-1/10")
  • Welding Table Series: Professional Extreme 8.7 Series
  • Welding Table Material Thickness: Approx. 15/16" to 1-1/16"
  • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Table Surface Hardness: 450-850 Vickers
  • Official Siegmund Welding Table Part No.: US280040.XD7
  • Maximum Weight Load: 14,310 lbs. (Based on Even Distribution)
  • Approximate Table Weight: 3,290 lbs.
  1. Boreholes on the Surface are in a Diagonal Grid Configuration.
  2. Boreholes have a diameter of 28mm (1-1/10"), Boreholes have a 1/10" Radius.
  3. Radius 1/10" on the table edges and 1/4" on the corners.
  4. Height of table side is 7-7/8" - Borehole in Diagonal Grid.
  5. INCH Scale Engraved on the Surface.
  6. Bottom of Structure has Reinforced Ribbing.

Welding Table Leg Options

Part Numbers, Specs and Pricing


Welding Table Leg Options
Part Numbers, Specs and Pricing

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

US280858.X

4,400 lbs.

28"

36"

Included

2. Height Adjustable Leg

US280877.XX

4,400 lbs.

22"-36"

30"-44"

$124

3. Leg with Casters and
Locking Brakes

US280876.XX

1,760 lbs.

36"

36"

$156

4. Height Adjustable Leg
with Casters and Locking Brakes

US280879.XX

1,760 lbs.

22"-30"

30"-38"

$202

Siegmund System 28 Welding Table Leg Options - Full Specifications

1. Standard Siegmund Leg(s)

  • Item No.: US280858.X
  • Leg Height: 28"
  • Table Height: 36"
  • Fine Adjustment: 2"
  • Capacity Per Table Leg: 4,400 lbs.
  • Cost Per Leg: $0 (Included with Welding Table as a Standard)
  • Cost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)

2. Height Adjustable Siegmund Leg(s)

  • Item No.: US280877.XX
  • Leg Height (Adjustable): 22" - 36"
  • Table Height (Adjustable): 30" - 44"
  • Fine Adjustment: 2"
  • Capacity Per Table Leg: 4,400 lbs.
  • Cost Per Leg: $124
  • Cost Per 6 Leg Set: $744

3. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: US280876.XX
  • Leg Height: 28"
  • Table Height: 36"
  • Fine Adjustment: 13/16"
  • Capacity Per Table Leg: 1,760 lbs.
  • Cost Per Leg: $156
  • Cost Per 6 Leg Set: $936

4. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: US280879.XX
  • Leg Height (Adjustable): 22" - 30"
  • Table Height (Adjustable): 30" - 38"
  • Fine Adjustment: 13/16"
  • Capacity Per Table Leg: 1,760 lbs.
  • Cost Per Leg: $202
  • Cost Per 6 Leg Set: $1,212

Select Table Legs
From $5,838.70

Original: $16,682.00

-65%
System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1—

$16,682.00

$5,838.70

More Images

System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1 - Image 2
System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1 - Image 3
System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1 - Image 4
System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1 - Image 5
System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1 - Image 6
System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1 - Image 7
System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1 - Image 8
System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1 - Image 9
System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1 - Image 10
System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1 - Image 11
System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1 - Image 12
System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1 - Image 13
System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1 - Image 14
System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1 - Image 15

System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1


The System 28 Welding Table Series was created with Heavy Duty Applications in Mind.

All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

  • The materials used are fundamental to the high level of hardness and long service life.
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.

Specs and Features

of the System 28, 8.7 Imperial Series Welding Tables


Specs & Features
of the System 28, 8.7 Imperial Series
Welding Tables

Welding Table Specs and Features:

  • Overall Tabletop Size: 5' x 10' (60" x 120")
  • Borehole Diameter: Ø 28mm (1-1/10")
  • Welding Table Series: Professional Extreme 8.7 Series
  • Welding Table Material Thickness: Approx. 15/16" to 1-1/16"
  • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Table Surface Hardness: 450-850 Vickers
  • Official Siegmund Welding Table Part No.: US280040.XD7
  • Maximum Weight Load: 14,310 lbs. (Based on Even Distribution)
  • Approximate Table Weight: 3,290 lbs.

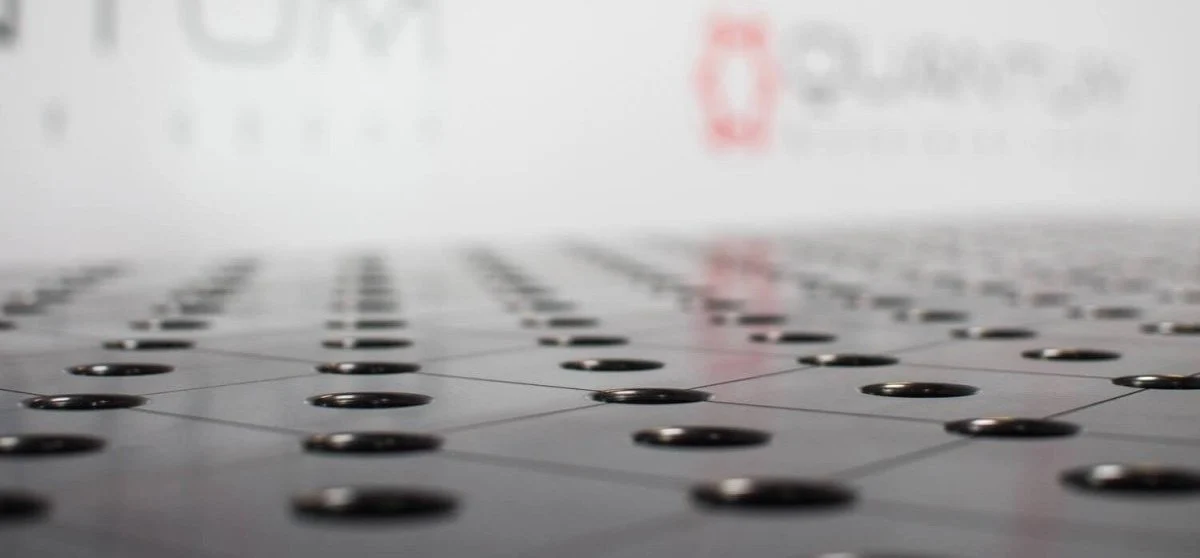

  1. Boreholes on the Surface are in a Diagonal Grid Configuration.
  2. Boreholes have a diameter of 28mm (1-1/10"), Boreholes have a 1/10" Radius.
  3. Radius 1/10" on the table edges and 1/4" on the corners.
  4. Height of table side is 7-7/8" - Borehole in Diagonal Grid.
  5. INCH Scale Engraved on the Surface.
  6. Bottom of Structure has Reinforced Ribbing.

Welding Table Leg Options

Part Numbers, Specs and Pricing


Welding Table Leg Options
Part Numbers, Specs and Pricing

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

US280858.X

4,400 lbs.

28"

36"

Included

2. Height Adjustable Leg

US280877.XX

4,400 lbs.

22"-36"

30"-44"

$124

3. Leg with Casters and
Locking Brakes

US280876.XX

1,760 lbs.

36"

36"

$156

4. Height Adjustable Leg
with Casters and Locking Brakes

US280879.XX

1,760 lbs.

22"-30"

30"-38"

$202

Siegmund System 28 Welding Table Leg Options - Full Specifications

1. Standard Siegmund Leg(s)

  • Item No.: US280858.X
  • Leg Height: 28"
  • Table Height: 36"
  • Fine Adjustment: 2"
  • Capacity Per Table Leg: 4,400 lbs.
  • Cost Per Leg: $0 (Included with Welding Table as a Standard)
  • Cost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)

2. Height Adjustable Siegmund Leg(s)

  • Item No.: US280877.XX
  • Leg Height (Adjustable): 22" - 36"
  • Table Height (Adjustable): 30" - 44"
  • Fine Adjustment: 2"
  • Capacity Per Table Leg: 4,400 lbs.
  • Cost Per Leg: $124
  • Cost Per 6 Leg Set: $744

3. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: US280876.XX
  • Leg Height: 28"
  • Table Height: 36"
  • Fine Adjustment: 13/16"
  • Capacity Per Table Leg: 1,760 lbs.
  • Cost Per Leg: $156
  • Cost Per 6 Leg Set: $936

4. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: US280879.XX
  • Leg Height (Adjustable): 22" - 30"
  • Table Height (Adjustable): 30" - 38"
  • Fine Adjustment: 13/16"
  • Capacity Per Table Leg: 1,760 lbs.
  • Cost Per Leg: $202
  • Cost Per 6 Leg Set: $1,212

Product Information

Shipping & Returns

Description


The System 28 Welding Table Series was created with Heavy Duty Applications in Mind.

All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

  • The materials used are fundamental to the high level of hardness and long service life.
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.

Specs and Features

of the System 28, 8.7 Imperial Series Welding Tables


Specs & Features
of the System 28, 8.7 Imperial Series
Welding Tables

Welding Table Specs and Features:

  • Overall Tabletop Size: 5' x 10' (60" x 120")
  • Borehole Diameter: Ø 28mm (1-1/10")
  • Welding Table Series: Professional Extreme 8.7 Series
  • Welding Table Material Thickness: Approx. 15/16" to 1-1/16"
  • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Table Surface Hardness: 450-850 Vickers
  • Official Siegmund Welding Table Part No.: US280040.XD7
  • Maximum Weight Load: 14,310 lbs. (Based on Even Distribution)
  • Approximate Table Weight: 3,290 lbs.
  1. Boreholes on the Surface are in a Diagonal Grid Configuration.
  2. Boreholes have a diameter of 28mm (1-1/10"), Boreholes have a 1/10" Radius.
  3. Radius 1/10" on the table edges and 1/4" on the corners.
  4. Height of table side is 7-7/8" - Borehole in Diagonal Grid.
  5. INCH Scale Engraved on the Surface.
  6. Bottom of Structure has Reinforced Ribbing.

Welding Table Leg Options

Part Numbers, Specs and Pricing


Welding Table Leg Options
Part Numbers, Specs and Pricing

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

US280858.X

4,400 lbs.

28"

36"

Included

2. Height Adjustable Leg

US280877.XX

4,400 lbs.

22"-36"

30"-44"

$124

3. Leg with Casters and
Locking Brakes

US280876.XX

1,760 lbs.

36"

36"

$156

4. Height Adjustable Leg
with Casters and Locking Brakes

US280879.XX

1,760 lbs.

22"-30"

30"-38"

$202

Siegmund System 28 Welding Table Leg Options - Full Specifications

1. Standard Siegmund Leg(s)

  • Item No.: US280858.X
  • Leg Height: 28"
  • Table Height: 36"
  • Fine Adjustment: 2"
  • Capacity Per Table Leg: 4,400 lbs.
  • Cost Per Leg: $0 (Included with Welding Table as a Standard)
  • Cost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)

2. Height Adjustable Siegmund Leg(s)

  • Item No.: US280877.XX
  • Leg Height (Adjustable): 22" - 36"
  • Table Height (Adjustable): 30" - 44"
  • Fine Adjustment: 2"
  • Capacity Per Table Leg: 4,400 lbs.
  • Cost Per Leg: $124
  • Cost Per 6 Leg Set: $744

3. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: US280876.XX
  • Leg Height: 28"
  • Table Height: 36"
  • Fine Adjustment: 13/16"
  • Capacity Per Table Leg: 1,760 lbs.
  • Cost Per Leg: $156
  • Cost Per 6 Leg Set: $936

4. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: US280879.XX
  • Leg Height (Adjustable): 22" - 30"
  • Table Height (Adjustable): 30" - 38"
  • Fine Adjustment: 13/16"
  • Capacity Per Table Leg: 1,760 lbs.
  • Cost Per Leg: $202
  • Cost Per 6 Leg Set: $1,212

System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration - 1 | SWAG Off Road
